Z700 Series Zero-Turn Mowers

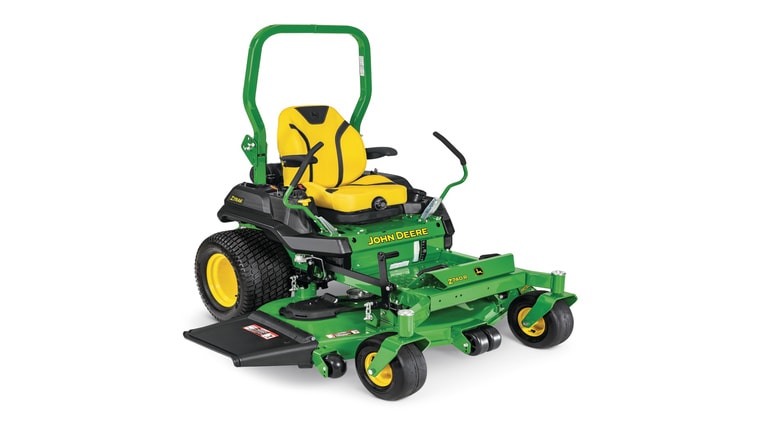

Z740R ZTrak™ Zero Turn Mower
- 23.5-hp (17.5 kW)* FX series engine
- 48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements
- 24-in. seat with fully adjustable mechanical suspension
- Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 - 5 inches
Dealer Inventory:
- Burlington, CO (1 available) - 719-346-8213
- Cheyenne, WY (2 available) - 307-638-8669
Specs & Compare
Add Model
Specs & Compare | ||||
---|---|---|---|---|
Select up to 4 models to compare specifications | John Deere Z740R ZTrak™ Zero Turn Mower |
Key Specs
Engine power | 23.5 hp 17.5 kW |
|||
---|---|---|---|---|
Engine model number | FX730V | |||
Forward speed | 0-10 mph 0-16.1 km/h |
|||
Front caster tires | 13x6.5-6 | |||
Drive tires | 24x9.5-12 (48-in. decks) 24X12-12 (54- and 60-in. decks) Optional - 24X12N12 Michelin® Tweel® X Turf Airless Radial (54- and 60-in. decks) |
|||
Seat back height | High back with armrests, 24 in. 60.9 cm |
|||
Width of cut | 48 in. 122 cm 54 in. 137 cm 60 in. 152 cm |
|||
Mulching system | Optional MulchControl™ attachment | |||
Warranty | 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Engine
Power | 23.5 hp 17.5 kW |
|||
---|---|---|---|---|
Model number | FX730V | |||
Displacement | 44.2 cu in. 726 cc |
|||
Cylinders | V-twin | |||
Lubrication | Full pressure with replaceable filter, capacity, 2.2 U.S. qt 2.1 L |
|||
Type | Overhead valve | |||
Battery | 12 V 340 CCA |
|||
Choke/speed control | Separate control levers | |||
Cooling method | Air | |||
Fuel tank capacity | 8 U.S. gal. 30.2 L |
|||
Fuel gauge | Fuel level sight line |
Drive train
Dual hydros | Hydro-gear ZT3400 with 1-in. (2.54-cm) axles | |||
---|---|---|---|---|
Hydraulic pumps | ||||
Wheel motors |
Travel speed
Forward speed | 0-10 mph 0-16.1 km/h |
|||
---|---|---|---|---|
Reverse speed | 0-4.5 mph 0-7.2 km/h |
|||
Speed and direction control | Twin premium levers | |||
Control adjustment | 2-height/18 positions |
Chassis
Frame | Heavy-duty frame tubing | |||
---|---|---|---|---|
Primer/paint | E-coat/powder | |||
Front caster tires | 13x6.5-6 | |||
Front caster bearings | Sealed ball bearings | |||
Drive tires | 24x9.5-12 (48-in. decks) 24X12-12 (54- and 60-in. decks) 24X12N12 Michelin Tweel X Turf Airless Radial (54- and 60-in. decks) |
|||
Hourmeter | Yes with low oil pressure and low battery voltage indicators | |||
Service interval decal | Yes | |||
Storage compartment | Yes | |||
Cup holder | Yes | |||
Maximum towing capacity |
Seat
Seat back height | High back with armrests, 24 in. 60.9 cm |
|||
---|---|---|---|---|
Fore-aft adjustment | While seated, 4 in. 10.2 cm |
|||
Seat suspension | Mechanical; adjustable for weight with ComfortGlide™ |
Lift system
Type | Spring assisted foot lift | |||
---|---|---|---|---|
Mower cut height | 1.5-5 in. 3.8-12.7 cm |
|||
Cut height increments | 0.25 in. 0.64 cm |
|||
Preset cut height | Yes |
Mower deck
Width of cut | 48 in. 122 cm 54 in. 137 cm 60 in. 152 cm |
|||
---|---|---|---|---|
Type | High-capacity (HC) PRO side discharge | |||
Mower deck material | 9 gauge 0.15 in. 3.8 mm |
|||
Mower drive system | V-belt |
PTO
Type | Electric, 125 lb-ft 169 Nm |
|||
---|---|---|---|---|
Drive | V-belt |
Dimensions
Wheelbase | 49.9 in. 126.7 cm |
|||
---|---|---|---|---|
Overall length | 82 in. 208.4 cm |
|||
Width without mower | 48.6 in. 123.5 cm With Tweel option - 52.8 in. 134.2 cm |
|||
Width with mower | 48 HC, 62.3 in. 158.2 cm 54 HC, 68.2 in. 173.2 cm 60 HC, 73.3 in. 186.1 cm |
|||
Width with mower (deflector raised for storage) | 48 HC, 53.2 in. 135.1 cm 54 HC, 59.4 in. 151 cm 60 HC, 64.8 in. 164.5 cm |
|||
Height | ROPS up - 71.1 in. 182.2 cm ROPS down - 49.7 in. 126.2 cm |
|||
Weight | With mower and fuel, 48 HC, 995 lb 451 kg With mower and fuel, 54 HC, 1,010 lb 458 kg With mower and fuel, 60 HC, 1,040 lb 472 kg With Tweel option, mower, and fuel, 54 HC, 1046 lb 474 kg With Tweel option, mower, and fuel, 60 HC, 1076 lb 488 kg |
Operation
Rollover protective structure (ROPS) | Yes | |||
---|---|---|---|---|
Slope operating limit | 15 degrees; 10 degrees with MCS | |||
Operator presence system | Yes | |||
Park brake interlock | Yes | |||
Operator video | Yes |
Buyer's notes
Note 1 | Flip-up and adjustable foot platform for easy service access | |||
---|---|---|---|---|
Note 2 | ||||
Note 3 | ||||
Warranty | 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Optional attachments
Mulching system | Optional MulchControl attachment | |||
---|---|---|---|---|
Rubber floor mat | Optional | |||
Sun shade | ||||
Mounted sprayer | ||||
Storage cover | ||||
Light kit | LED - fender mounted | |||
Material collection system | 48 HC PRO, 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger, 6.5 bu 229.1 L Not compatible with Tweel option |
Additional information
Date collected | 28-Aug-2020 | |||
---|---|---|---|---|
Manufacturing location |
