Disc Mowers

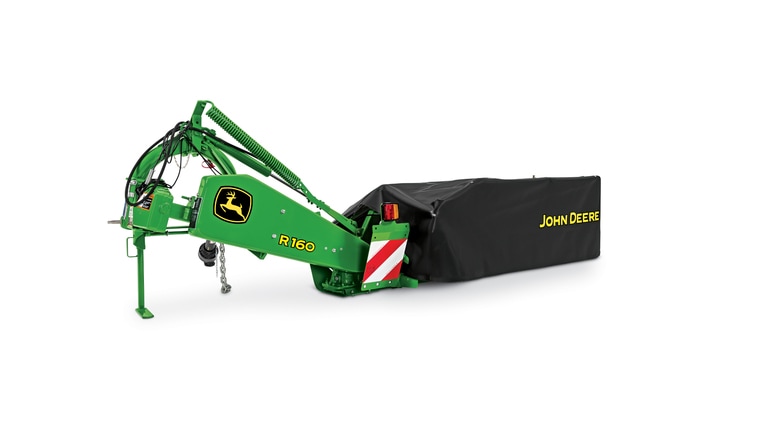

R160 Disc Mower
- Easy-to-attach 3-point hitch tractor hookup
- High-clearance frame and suspension
- Disc quill easy to remove for serviceability
Features
Easy-to-attach 3-point hitch tractor hookup
Easy-to-attach 3-point hitch
The R160 and R200 Mowers attach to tractors with a Category 1 and 2, 3-point hitch. The R160 and R200 are not quick-hitch compatible.
The R160 and R200 models rely on the parking stand to hold up 3-point hitch arms to ensure easy hook up to the tractor.
Adjustable lower hitch pins
Lower hitch pins can be adjusted left or right to match the mower offset for tractors with wider tire spacing. The R160 and R200 models have an offset range of 172 mm (7 in.).
Uptime |
Cutting arc provides a wide range of cutting angles |
Heavy-duty cutterbar for the toughest cutting conditions
Rotary disc cutterbar
A multi-V-belt drive system transfers power from the gearbox to each rotary disc.
Power is transmitted to the rotary discs through fully enclosed gears running in oil for a quiet, smooth, reliable operation.
All models have a spring-loaded belt tensioner for easier belt adjustment. The belt tension automatically compensates for initial belt stretch, increasing belt life.
High-speed rotary discs
Rotating at 2986 rpm, the high-speed discs cut in the toughest conditions.
The low-profile cutterbar allows a close cut while maintaining a level cutterbar. The cutting height is controlled by adjusting the tilt of the cutterbar.
Each disc has two free-swinging knives:
- Easy to remove and replace
- Two cutting edges, doubling the use life
Easy-to-remove disc quill
Removable quill
The cutterbar is protected from severe impact should an object be struck.
- Disc drive-shaft shears
- Reduces chance of internal damage to cutterbar
- Improves cutterbar reliability
Disc quills are easily removed from the top of the cutterbar for improved serviceability.
Each disc has two free-swinging knives:
- Easy to remove and replace
- Two cutting edges, doubling the use life
- Swings away to reduce possible damage if a solid object is struck
Lift and suspension system
Heavy floatation spring
The disc mowers use the hydraulic cylinder to lift the cutterbar from the cutting position to the transport position, where the cutterbar automatically locks into place.
The R160 and R200 have a cutting arc of +35 degrees to -22 degrees.
A heavy spring establishes even flotation along the full length of the cutterbar in a variety of different field conditions and topography.
Performance |
Cutting arc provides a wide range of cutting angles |
Specifications
Add Model
| Specifications | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere R160 Disc Mower |
Key Specs
| Mower | Number of disks Four Number of knives Eight Width of cut 1.6 m 5.25 ft Weight 420 kg 925 lb Disk speed 2,986 rpm Cutting arc +35 to -22 degree (angle) Lift system Hydraulic Minimum PTO HP 22 kW 30 hp PTO speed 540 rpm |
|---|
Mower
| Number of disks | Four | |||
|---|---|---|---|---|
| Number of knives | Eight | |||
| Width of cut | 1.6 m 5.25 ft |
|||
| Transport width | ||||
| Weight | 420 kg 925 lb |
|||
| Disk speed | 2986 rpm | |||
| Cutting speed | ||||
| Cutting arc | +35 to -22 degree (angle) | |||
| Lift system | Hydraulic | |||
| Minimum PTO HP | 22 kW 30 hp |
|||
| PTO speed | 540 rpm | |||
| Tilt | ||||
| Breakaway | ||||
| Stroke | ||||
| Sickle speed | ||||
| Knife drive | ||||
| PTO drive |
