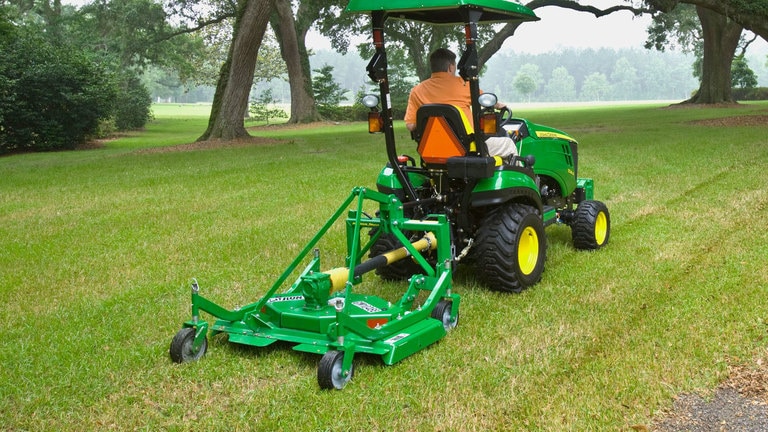

GM10E Series Grooming Mower
- 11-gauge, 3.03-mm (0.12-in.) reinforced deck
- Single belt drive with an automatic belt idler
- Spindle shafts greased from the top for easy service
- Spacers for quick and easy height adjustment from 2.5 cm (1 in.) to 10.2 cm (4 in.)
- iMatch™ quick-hitch compatible with conversion kit
The GM10 Series Mowers come with a 22.4-kW (30-hp) rugged gearbox. Cooling fins help extend the life of the gearbox.
Choose from various cutting blades
To meet specific mowing needs, choose from two blade types:
- Low lift
- High lift (standard)
These rear-discharge mowers are equipped with four swivel wheels that follow ground contours and prevent scalping. Stamped, steel-reinforced wheel arms maintain a consistent cutting height.
iMatch™ quick-hitch conversion kits for grooming mowers
The GM10, GM10E, and GM20 Grooming Mowers are only compatible with iMatch using a kit (code 9630).
Mulching kits for grooming mowers
A mulching kit is available as an attachment for field conversion. The mulching kit includes unique mulching blades, baffles, and guard supports to produce smaller clippings, which decompose faster than clippings that haven't been mulched.
Operators should follow the one-third rule for cutting height when mulching in grass.
This mulching kit also does an excellent job when mulching leaves.
Anti-scalping roller conversion kits for GM10E, GM11, and GM20 Series Grooming Mowers
An anti-scalping roller kit can be ordered as an attachment for field conversion for FM and GM Series Grooming Mowers when it is not standard equipment. The roller is attached to the front of the cutting deck to help reduce scalping.
Each kit contains one roller.
Specs & Compare
|Specs & Compare|
|Select up to 4 models to compare specifications||
|Overall machine width||129.5 cm
|Cutting width||121.9 cm
|Cutting height||2.5-10.2 cm
|PTO horsepower||11.9-22.4 kW
|PTO rpm||540 rpm|
|Mower deck horsepower||22.4 kW
|Tip speed, average fpm||4019.7 m/min
|Composition||Heat treated alloy steel|
|Adjustment||Spring loaded idler|
