Grooming Mowers

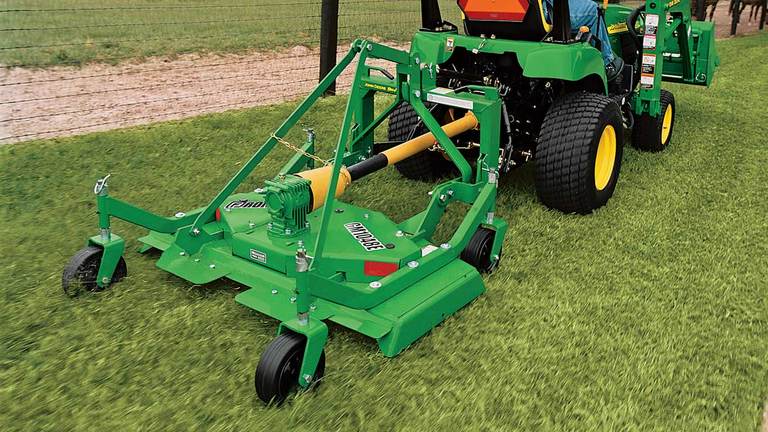

GM10 Series Grooming Mowers
- 11-gauge, 3.03-mm (0.12-in.) reinforced deck
- Single belt drive with an automatic belt idler
- Spindle shafts greased from the top for easy service
- Spacers for quick and easy height adjustment from 2.5 cm (1 in.) to 10.2 cm (4 in.)
- iMatch™ quick-hitch compatible with conversion kit
Features
Floating top hitch
Provides a better cut
Floating hitches flex to allow the mower to better follow the terrain with less stress and wear to the tractor drawbar.
Rugged gearboxes with cooling fins
Cooling fins extend the life of the gearbox
The GM10 Series Standard-Duty Grooming Mowers come with a 29.8-kW (40-hp) rugged gearbox. Cooling fins help extend the life of the gearbox.
Choose from various cutting blades
Three blades per deck
To meet specific mowing needs, choose from two blade types:
- Low lift
- High lift (standard)
iMatch™ quick-hitch conversion kits for grooming mowers
iMatch quick-hitch
The GM10, GM10E, and GM20 Grooming Mowers are only compatible with iMatch using a kit (code 9630).
Rear chain shield conversion kit for grooming mowers
Prevents debris from flying out from under deck
A rear chain shield kit is available as an attachment for field conversion. It assists in preventing debris from flying out from underneath the deck of the rear-discharge grooming mowers.
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere GM10 Series Grooming Mowers |
Dimensions
| Overall machine width | 129.5 cm 51 in. |
|||
|---|---|---|---|---|
| Cutting width | 121.9 cm 48 in. |
|||
| Cutting height | 2.5-10.2 cm 1-4 in. |
Weight
| Operational | 154.2 kg 340 lb |
|||
|---|---|---|---|---|
| Shipping | 180.5 kg 398 lb |
Tractor requirements
| PTO horsepower | 11.9-22.4 kW 16-30 hp |
|||
|---|---|---|---|---|
| PTO rpm | 540 rpm |
Hitch
| Category | Cat. 1 | |||
|---|---|---|---|---|
| iMatch™ compatible |
Deck
| Thickness | 11 gauge 3.03 mm 0.1196 in. |
|||
|---|---|---|---|---|
| Discharge | Rear |
Gearbox
| Mower deck horsepower | 22.4 kW 30 hp |
|||
|---|---|---|---|---|
| Ratio |
Blade
| Quantity | Three | |||
|---|---|---|---|---|
| Tip speed, average fpm | 4019.7 m/min 13188 fpm |
|||
| Spindles | Quantity Three |
|||
| Overlap | -- | |||
| Dimensions | ||||
| Composition | Heat treated alloy steel |
Caster wheels
| Quantity | Four | |||
|---|---|---|---|---|
| Solid | Size 21.3x8.1 cm 8.4x3.2 in. Yes |
|||
| Pnuematic | ||||
| Bearings |
Belts
| Type | BX | |||
|---|---|---|---|---|
| Quantity | One | |||
| Adjustment | Spring loaded idler |
Set-up time
| Labor hours | 0.5 |
|---|
Warranty
| Machine | 1 year | |||
|---|---|---|---|---|
| Gearbox | 1 year |
Additional information
| Date collected |
|---|
