Mower Conditioners

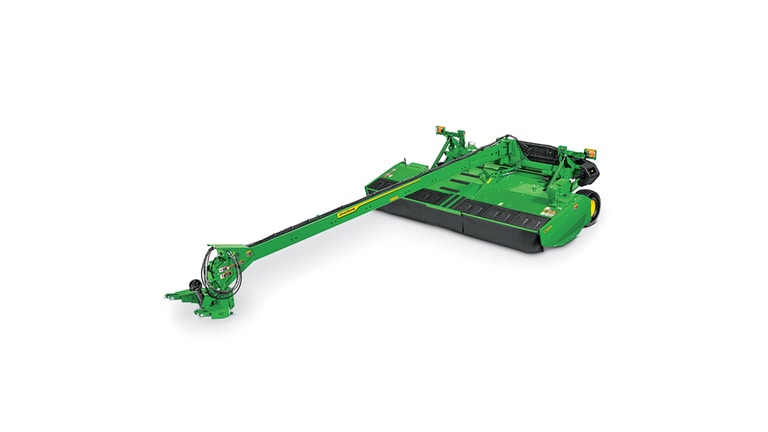

C500 Mower-Conditioner
- 16 ft (5 m) cutting width
- Reduce service time with Quick Change Knives
- Easier serviceability with modular-design cutterbar
- Improve windrow formation and reduce ash content with overshot cross auger
- Urethane, V-10 conditioners or Tri-Lobe conditioners
Specs & Compare
Specs & Compare | ||||
---|---|---|---|---|
John Deere C500 Mower-Conditioner |
Key Specs
PTO speed | 1000 rpm | |||
---|---|---|---|---|
1000 rpm 1-3/8 in. PTO | 120-210 hp 89-157 kW |
|||
1000 rpm 1-3/4 in. PTO | ||||
Powerline type | ||||
Standard hitch | Rockshaft swivel | |||
Optional hitch | Drawbar swivel | |||
Hydraulic pressure required | 17,237 kPa 2,500 psi |
|||
Cutterbar - cutting width | 4.9 m 16 ft |
|||
Number of disks/knifes | 10 20 |
|||
Transport width | 5.03 m 16.5 ft |
Power requirements
1000 rpm 1-3/8 in. PTO | ||||
---|---|---|---|---|
1000 rpm 1-3/4 in. PTO | ||||
Powerline type | ||||
540 rpm PTO | ||||
PTO speed |
Tractor equipment
Tractor connection | 21 spline | |||
---|---|---|---|---|
Standard hitch | Rockshaft swivel | |||
Optional hitch | Drawbar swivel | |||
Hydraulic pressure required | 17,237 kPa 2,500 psi |
|||
Hydraulic connections |
Cutterbar
Type | John Deere | |||
---|---|---|---|---|
Cutting width | 4.9 m 16 ft |
|||
Cutting height | 1.6-11.7 cm 0.63-6.7 in. |
|||
Number of disks | 10 | |||
Number of knives | 20 | |||
Bolted knives | ||||
Disk speed | 2,650 rpm | |||
Knife tip speed | 307 km/h 191 mph |
|||
Disk drive | Gear | |||
Lubrication | Hy-Gard oil | |||
Oil reservoir capacity | 11.4 L 12 U.S. qt |
|||
Cutterbar oil check | Combination sight glass, drain plug | |||
Cutterbar angle | ||||
Angle adjustment | Manual or hydraulic | |||
Angle range | 2-8 degree (angle) | |||
Cutterbar protection | ShearHub | |||
Adjustable gauge shoes | Yes | |||
Suspension system |
Impeller conditioner
Width | ||||
---|---|---|---|---|
Diameter | ||||
Tines type | ||||
Number of tines | ||||
Number of speeds | ||||
Drive | ||||
Conditioner hood | ||||
Wide spread |
Rolls conditioner
Width | 269 cm 105.5 in. |
|||
---|---|---|---|---|
Diameter | 25.3 cm 9.96 in. |
|||
Type of material | Urethane or Steel | |||
Design | Urethane: Recessed cleat, Steel Intermeshing flutes (V-10 and Tri-Lobe) | |||
Speed | 1000 rpm | |||
Drive | Telescoping shaft | |||
Windrow width |
Dimensions
Transport width | 5.03 m 16.5 ft |
|||
---|---|---|---|---|
Overall length | ||||
Transport length | 9.9 m 32.5 ft |
|||
Weight, roll conditioner | With Urethane roll conditioner: 4,010 kg 8,840 lb With V-10 steel roll conditioner: 4,091 kg 9,020 lb With Tri-Lobe roll conditioner: 4,148 kg 9,145 lb |
|||
Standard tires | 31x13.5 15 8PR | |||
Weight, impeller conditioner |
General
Are wrenches required for adjusting? |
---|
Additional information
Date collected | August 24, 2020 |
---|
