4WD and Track Tractors

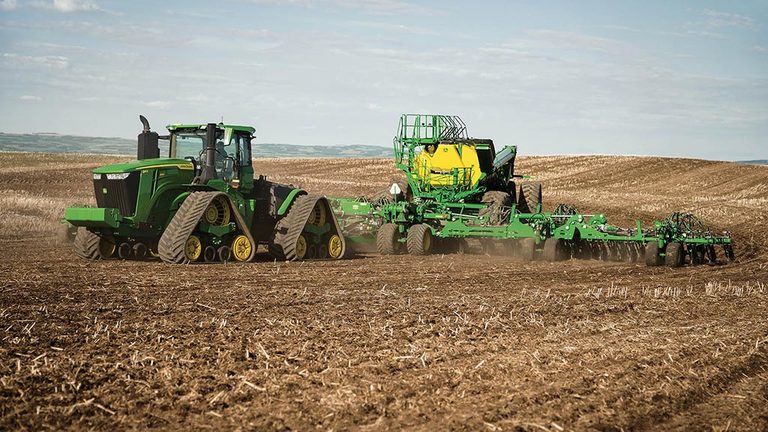

9RX 640 Tractor
- Engine HP1: 691 Max/ 640 hp Rated
- Fully integrated precision ag technology
- e18™ PowerShift transmission
- 120-inch track spacing option
- JD14X (13.6L) Engine
1Engine power PS (hp ISO) at max engine power speed (ECE-R120). John Deere Standard RES10080, SAE Standards J1995.
Specifications
Specifications | ||||
---|---|---|---|---|
John Deere 9RX 640 Tractor |
Key Specs
Engine description | Cummins® X15 (B20 diesel compatible) | |||
---|---|---|---|---|
Engine displacement | 14.9 L 912 cu in. |
|||
Rated engine power | 471 kW 640 hp |
|||
Maximum engine power | 508 kW 691 hp |
|||
Rated PTO power (hp SAE) | 249 kW 335 hp |
|||
Maximum PTO power | ||||
Transmission type | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph |
|||
Hydraulic pump rated output | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm |
|||
Rear hitch category (SAE designation) | Category 4N/4: 6804 kg 15,000 lb Category 4N/4: 9072 kg 20,000 lb |
|||
Base machine weight | 25,546 kg 56,320 lb |
Engine specifications
Description | Cummins X15 (B20 diesel compatible) | |||
---|---|---|---|---|
Engine type | Diesel, inline, 6-cylinder, wet-sleeve cylinder liners with four valves in-head | |||
Engine family | ||||
Rated speed | 2100 rpm | |||
Aspiration | Single variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) | |||
Cylinders liners | ||||
Emission level | Final Tier 4 (FT4) | |||
After treatment type | Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR) | |||
Displacement | 14.9 L 912 cu in. |
Engine performance
Rated power | 471 kW 640 hp |
|||
---|---|---|---|---|
Rated PTO power (hp SAE) | 249 kW 335 hp |
|||
Maximum PTO power | ||||
Intelligent Power Management (IPM) | ||||
Power boost | 8 percent | |||
Maximum engine power | 508 kW 691 hp |
|||
Engine peak torque | At 1600 rpm: 2890 Nm 2132 lb-ft | |||
Drawbar power | ||||
PTO torque rise | 35 percent | |||
Fuel injection system and control | ||||
Air cleaner type |
Transmission
Type | John Deere e18 18-speed PowerShift with Efficiency Manager: 40 km/h 25 mph |
|||
---|---|---|---|---|
Reverser | ||||
Clutch; wet/dry | ||||
Creeper |
Hydraulic system
Type | Closed-center, pressure-and-flow compensated | |||
---|---|---|---|---|
Pump rated output | Standard: 208 L/min 58 gpm Optional: 416 L/min 110 gpm |
|||
Available flow at a single rear SCV | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 159 L/min 42 gpm |
|||
Available flow at front SCVs | ||||
Number of rear selective control valves (SCVs) | Four to eight factory or field installed Base: four 1.3-cm (1/2-in.) couplers Optional: five to six 1.3-cm (1/2-in.) couplers factory installed Optional: three 1.9-cm (3/4-in.) couplers plus five 1.3-cm (1/2-in.) couplers factory installed |
|||
Number of mid selective control valves (SCVs) | ||||
Number of front selective control valves (SCVs) | ||||
Joystick SCV control | ||||
Auxiliary hydraulic features | ||||
SCV control | Electronic |
Rear hitch
Hitch draft control load sense type | ||||
---|---|---|---|---|
Remote control valves available | ||||
Hitch category (SAE designation) | Category 4N/4: 6804 kg 15,000 lb Category 4N/4: 9072 kg 20,000 lb |
|||
Maximum lift capacity behind lift points | Category 4N/4: 9072 kg 20,000 lb |
|||
Lift capacity at standard frame | ||||
Sensing type | Electrohydraulic with draft sensing | |||
Rear axle differential lock |
Drawbar
Drawbar category | Category 5 | |||
---|---|---|---|---|
Maximum vertical load | 5440 kg 12,000 lb |
Rear power take-off (PTO)
Type | Independent 44 mm (1.75 in.) 20-spline, 1000 rpm |
|||
---|---|---|---|---|
Engine rpm (at rated PTO speeds) | ||||
Economy PTO speeds | ||||
Reverse PTO speeds | ||||
Multispeed PTO option availability | ||||
Ground speed PTO option availability | ||||
PTO actuation | Electrohydraulic |
Front hitch
Category | ||||
---|---|---|---|---|
Electric power | ||||
Standard lift capacity | ||||
Front power take-off (PTO) | ||||
PTO speed |
Rear axle
Type | ||||
---|---|---|---|---|
Final drive type | Bull gear and double idler with floating pinion | |||
Differential controls | ||||
Axle type | ||||
Brakes, type and control | ||||
Rear differential lock | Full-locking electrohydraulic | |||
Load rating |
Front axle
Type | ||||
---|---|---|---|---|
Front axle differential lock | Full-locking electrohydraulic | |||
Load rating |
Tires
Front | ||||
---|---|---|---|---|
Rear | ||||
Wheel tread range | ||||
Turning radius with brakes | ||||
Turning radius without brakes | ||||
Central Tire Inflation System (CTIS) |
Tracks
Tread spacing | Wide undercarriage: 2218 mm 87 in. 3048 mm 120 in. |
|||
---|---|---|---|---|
Drive type | Camso™ 3500 and 6500 Ag Series - reinforced drive lug technology | |||
Track width | Standard: 762 mm 30 in. Optional: 914 mm 36 in. |
|||
Midrollers | Two |
Steering
Type | Standard: Hydraulic power steering Optional: ActiveCommand Steering (ACS™) |
---|
Brakes
Primary brake (foot brake) | ||||
---|---|---|---|---|
Secondary brake | ||||
Park lock | ||||
MFWD braking | ||||
Front axle brakes | ||||
Auxiliary brakes | ||||
Hydraulic trailer brakes | ||||
Pneumatic trailer brakes |
Electrical system
Alternator size | Standard: 250 amp Optional: 330 amp |
|||
---|---|---|---|---|
Battery options | 12 V | |||
Working lights | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED conveninence lights |
|||
Type of bulb in headlight (Halogen, Zenon, LED) | Standard: halogen, 65 W Optional: LED |
|||
Type of bulb in beacon (Halogen, Zenon, LED) | ||||
dB(A) rating for backup alarm | ||||
Total cold cranking amps | 4 x 925 CCA Total: 3700 CCA |
Operator station
Rollover protective structure, OOS | ||||
---|---|---|---|---|
Seat | Degree of seat swivel, left hand 25 degree (angle) Degree of seat swivel, right hand 40 degree (angle) |
|||
Cab suspension | Standard | |||
Instructional seat | Standard | |||
Display | Standard: Generation 4 4600 CommandCenter™: 25.4 cm 10 in. Optional: Extended monitor |
|||
Radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio |
|||
Inner cab volume | 3.27 m3 115 cu ft |
|||
dB(A) rating | ||||
Cab glass area | 6.64 m2 71.47 sq ft |
|||
Safety glass rating | ||||
Front visibility |
Dimensions
Wheelbase | 4125 mm 162.4 in. |
|||
---|---|---|---|---|
Overall width | ||||
Overall length | Excluding hitch: 8309 mm 327.1 in. Including hitch and coupler: 8545 mm 336.4 in. |
|||
Overall height | ||||
Drawbar clearance | 311 mm 12.2 in. |
|||
Front axle center | ||||
Approximate shipping weight, Open;Cab | 25,546 kg 56,320 lb |
Weight
Base machine weight | 25,546 kg 56,320 lb |
|||
---|---|---|---|---|
Maximum ballast level | 30,391 kg 67,000 lb |
|||
Maximum permissible weight |
Capacities
Crankcase oil volume | 43.5 L 11.5 U.S. gal. |
|||
---|---|---|---|---|
Fuel tank | 1514 L 400 U.S. gal. |
|||
Diesel exhaust fluid (DEF) tank | 120 L 31.7 U.S. gal. |
|||
Cooling system | 62 L 16.3 U.S. gal. |
|||
Transmission-hydraulic system | With 3-point hitch and PTO: 227 L 60 U.S. gal. Without 3-point hitch and PTO: 220 L 58 U.S. gal. |
Serviceability
Interval for engine oil change | 400 hours | |||
---|---|---|---|---|
Interval for hydraulic/transmission oil change | 1500 hours | |||
Interval for engine coolant change | 6000 hours |
Loaders
Loader | ||||
---|---|---|---|---|
Lift capacity at full height | ||||
Maximum lift height | ||||
Leveling type |
Precision AG
Guidance | Integrated AutoTrac™ | |||
---|---|---|---|---|
Telematic | Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination) | |||
Remote diagnostics | Available with activated JDLink hardware and activations |
Miscellaneous
AutoTrac ready | ||||
---|---|---|---|---|
ISOBUS ready | ||||
CommandCenter video inputs | ||||
Immobilizer | ||||
Side slope rating | ||||
Uphill/downhill slope rating | ||||
Country of manufacture | USA |
Additional information
Date collected | 1 March 2021 |
---|
