6 Series Row Crop Tractors

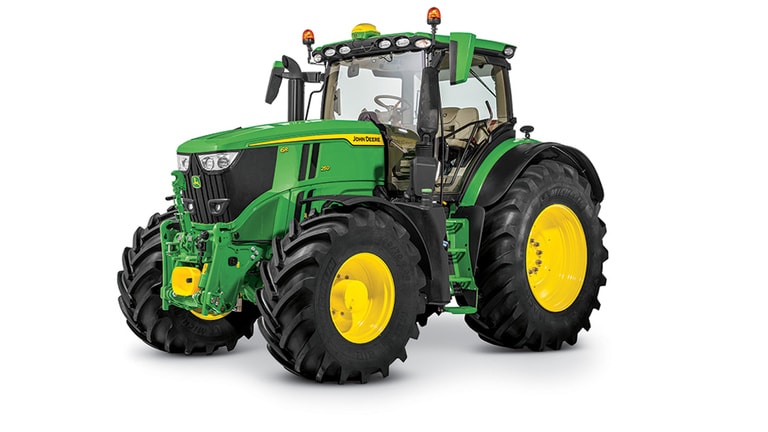

6R 250 Tractor
- John Deere FT PowerTech™ 6-cylinder engines
- Engine HP: 275 HP Max 250/HP Rated with up to 40 additional HP (IPM)
- IVT transmission for seamless power transfer
- Optional CommandPRO™ puts tractor and implement control at your fingertips
The Generation 4 CommandCenter creates the primary user interface for 6R Tractors. The Generation 4 CommandCenter provides an excellent, user-savvy operating experience.
Producers can also use a variety of implements with the Generation 4 CommandCenter as it is ISOBUS virtual terminal (VT) capable.
Expect machine productivity gains, along with increased operator confidence, thanks to a simple, customizable interface. The reliability of the Generation 4 CommandCenter also aids in optimal operating experience and maximizes uptime.
- Easy-to-change fields and guidance lines
- Custom-defined views
- On-screen help functions
- Intelligent warnings
- Context-based help
|1947||4200 Processor (21.3-cm [8.4-in.] display only)|
|1946||4600 Processor (25.4-cm [10-in.] display only)|
|1829||21.3-cm (8.4-in.) CommandCenter display (4200 Processor only)|
|1822||25.4-cm (10-in.) CommandCenter display (4600 Processor only)|
|1851||CommandCenter AutoTrac™ activation|
|1858||4200 Section Control and Data Sync activation plus CommandCenter AutoTrac activation|
|1857||4600 CommandCenter Premium Activation 3.0|
|1861||4600 CommandCenter Automation Activation 1.0|
|186S||4600 CommandCenter Automation Activation 3.0|
NOTE: CommandCenter AutoTrac activation stays with the tractor.
NOTE: 6155RH only available with code 1845.
The machine monitor application provides the user instantaneous readings about the status or condition of the machine. Values shown in the machine monitor vary by application, but typically include parameters like engine speed, coolant temperature, and ground speed. The machine monitor supports run page modules in the layout manager, allowing the user to populate specific machine parameters directly to a run page.
NOTE: The machine monitor application replaces part of the Universal Performance Monitor in previous machines.
The Generation 4 CommandCenter features a modular-designed layout manager so an operator can easily create the structure that meets the operator’s demands. From the factory, machines are equipped with standard run pages. An unlimited amount of run pages can be added to the Generation 4 CommandCenter based on operator preference or operational needs. Toggling between run pages is as easy as swiping the screen or using the arrow buttons on the top right portion of the title bar.
Users and access
Users and access allow the owner to lock out certain functions to prevent operators from accessing or changing settings. Lock-out functions are managed with an owner-defined four-digit code.
Lockout features are available for:
- Precision Ag Technology applications
- Power take-off (PTO)
- FieldCruise™ engine controls
- Machine monitor
On-screen help and diagnostic text
There are a few different ways to get meaningful on-screen help when navigating the Generation 4 CommandCenter. Operators can find the help icon on the shortcut bar on the bottom of every page. This icon gives detailed information on everything from tractor operation to application information. Simply select the help icon and navigate to the information section that is needed.
Additionally, application-based help is also available in all locations of the CommandCenter. Simply click on the (i) icon available on the title bar and it will lead directly to more information on the application currently being used.
Diagnostic text and information are available for better understanding of whether applications are operating as directed.
A. Next run page
B. Status center
C. Expand shortcut keys
E. Run page
The work monitor application displays the performance information about the task being performed by the machine. The user is shown averages, totals, and productivity of the machine, such as area worked, average working speed, and fuel usage. The values of the work monitor can be reset by the user at any time. Specific values of the work monitor can be configured by the user to be shown on a run page.
NOTE: The work monitor application replaces part of the universal performance monitor in previous machines.
Tractors with a 4200 CommandCenter are equipped with one video input and tractors with a 4600 CommandCenter have two video inputs (one port to connect two cameras via a Y harness). The operator can set a variety of triggers, including reverse, PTO, hitch, and selective control valve (SCV) levers to activate the camera. The image will then appear on the CommandCenter display. The camera (video observation system) is available through John Deere Parts and Ag and Industrial (A & I) Products.
John Deere Generation 4 CommandCenter processors
A Generation 4 CommandCenter is made up of a processor and a display. Two processor options are available for the Generation 4 CommandCenter.
The 4600 Processor is the premium processor. Available features with the premium processor include:
- Compatible with 25.4-cm (10-in.) touchscreen display
- Two video camera inputs (one port to connect to two cameras via a Y harness)
- One USB input
- AutoTrac capable (machine-specific activation sold separately)
The 4200 Processor is base equipment on all 6R Tractors. It offers:
- Compatible with 21.3-cm (8.4-in.) touchscreen display
- One video camera input
- One USB input
- AutoTrac capable (machine-specific activation sold separately)
|Tractors||4600 Processor||4200 Processor|
Generation 4 CommandCenter displays are available in the following configurations:
- 21.3-cm (8.4-in.) display on the 4200 CommandCenter
- 25.4-cm (10-in.) display on the 4600 CommandCenter
For those wanting to maximize their viewing real estate, the 25.4-cm (10-in.) touchscreen color display is an excellent choice. With the 25.4-cm (10-in.) display, the title bar and all shortcut keys can always be viewed. Operators can monitor more items at once on the 25.4-cm (10-in.) touchscreen display.
A. Next and previous run page
B. Status center
C. Shortcut keys
E. Run page
F. Title bar
Infinitely Variable Transmission (AutoPowr™/IVT™) system
The John Deere Infinitely Variable Transmission (AutoPowr/IVT) utilizes a combination of mechanical and hydrostatic power, providing stepless and continuous power across an infinitely variable range of speeds.
Single-speed lever is used for intuitive and accurate control of ground speeds as slow as 50 m/h (0.03 mph) to 40/50 km/h (25/31 mph). In model year 2015, the transmission was revised so transport speeds are reached at lower engine rpms, ultimately reducing fuel consumption and in cab noise. Software has also been revised to ensure under acceleration engine rpm is kept to a minimum within the engines peak torque band.
- Easy to operate
- Four mechanical modes lead to excellent performance and reduced fuel consumption
- Revised ratios bring transport speeds at reduced engine rpm – reduced fuel consumption and increased comfort
- Precise management of forward speeds
- Less shifting time means better management of the implement
- Requires 240-amp alternator (code 8743) (6110R, 6120R, and 6130R)
- Requires code electrohydraulic (EH) selective control valves (SCVs) and 240-amp alternator
- Requires braked front axle (code 6070)
- Requires hydraulic trailer brakes (code 8756)
- Requires B-speed rated tires and front fenders (8011 or 8012)
NOTE: Not available in 6155RH.
|1558||AutoPowr/IVT – 50 km/h (31 mph)|
- Requires code EH SCVs
- Requires 240-amp alternator (code 8743) (6110R, 6120R, and 6130R)
NOTE: Not available in 6155RH.
|1557||AutoPowr/IVT – 40 km/h (25 mph)|
50 km/h (31 mph)
The following features are part of the 50 km/h (31 mph) package:
- Triple-Link Suspension (TLS™) Plus system with brakes for improved braking capacity
- Rim and tire matching with fixed tread rims to minimize vibration and increase ride comfort
- Trailer brakes
- Front and rear fenders
Set-speed adjusting wheel
The set-speed adjusting wheel is the rotational thumbwheel located on the speed control lever. The wheel is quick and easy to adjust with the operator’s thumb and rotates infinitely with no stop or start position. When the operator rotates the thumbwheel, the ground speed of the tractor is increased by 0.2 km/h (0.12 mph) when the tractor is traveling below 20 km/h (12 mph). When the tractor is traveling above 20 km/h (12 mph), the tractor is increased by (1) km/h (0.6 mph). The set speed adjuster is used to set the maximum commanded forward or reverse speed in each speed band.
As the operator moves the lever within or between speed bands, the electronic management system ensures smooth, quick, and powerful acceleration or deceleration, regardless of load or ground speed.
While in motion, the operator can adjust the maximum speed of each speed band. With the lever in band one, the target maximum speed can be adjusted to 20 km/h (12 mph). With the lever in band two, the maximum speed of 40/50 km/h (25/31 mph) can be defined depending on transmission option. When stationary, all set speeds, both forward and reverse, may be adjusted while the left-hand reverser is in the power zero position.
- Tractors without CommandPRO allow for temporary stationary control of the tractor without using the brakes. For tractors with CommandPRO, ActiveZero is always in place when the tractor is not in N or P and brakes are not applied.
- Quick and easy way for the operator to change the direction of the tractor.
- Ensures that the tractor cannot be operated with the park lock on.
Electronic hand and foot throttle
The tractor ground speed is controlled via the accelerator and hand throttle. The engine rpm can be set to a specific ground speed using the hand throttle (A). The following functions are available for tractors without CommandPRO:
- Button (B) activates and de-activities the FieldCruise™ system (with two available pre-sets), which is an engine rpm limiter.
- The specific ground speed set can be set by pressing button (C); this pedal lock feature works like the cruise control on a car (only functions when foot throttle is ordered).
- Button (D) allows the operator to drive with the minimum target rpm with ECO on.
- NOTE: Button (D) is only active in custom mode.
- Quick and precise speed changes
- Fine-tuning via the speed wheel
- Two steps in the slot of the speed control lever to program two set speeds
- Speed feedback on the analog dashboard – the needle shows the actual speed, and red lights around the needle show the commanded speed
- Easy-to-handle exact-speed settings through the CommandCenter display and the speed wheel
An easy-to-use left-hand reverser is available in all the AutoPowr/IVT transmissions. The reverser control is located at the 10 o’clock position on the steering column for intuitive control. For tractors without the CommandPRO™ joystick, the left-hand reverser incorporates the following controls:
- Forward direction selector
- Reverse direction selector
- Park (P) - Park lock (P) - Tractor cannot move and the trailer brakes are engaged. Lever must be in the (P) park position to start the tractor.
- Neutral (N) – Tractor is in a non-parked position and capable of movement.
- Power zero – Tractor is held stationary by the transmission.
For tractors with CommandPRO, the left-hand reverser incorporates only forward and reverse direction selection and the lever is self-centering. The park (P) and neutral (N) positions can be selected on the CommandPRO.
Custom mode allows the operator to customize the AutoPowr/IVT transmission settings when full auto mode is not desirable. In custom mode, operators can turn ECO on and off. This can either be done by pushing the ECO button on the side of the hand throttle module or by selecting ECO in the transmission settings page of the CommandCenter display. When accelerating with ECO on, the tractor minimizes engine speeds, which reduce acceleration aggressiveness. As a result, ECO on should reduce fuel consumption in lighter, steady loads. In contrast, when accelerating with ECO off, engine speed can be higher aggressively to maximize productivity. The higher engine speeds with ECO off better enable the tractor to quickly recover from sudden load increases and not lose as much ground speed when load increases occur.
In custom mode, the engine droop settings can be defined between 4 percent and 30 percent with PTO on and off. The higher the droop percentage, the more the engine rpm will be reduced when pulling before a transmission ratio change is made.
The following functions are available for tractors with CommandPRO:
- Button (B) and (D) activate and de-activate engine set speeds that can be set in the CommandCenter display.
- Button (C) can be used to fix the engine speed command to the current hand throttle position (no automatic engine speed control).
- Define setting of the engine speed and its limit with the FieldCruise system
- Quick attainment of desired speed
- Pedal lock function allows command foot throttle speed to be maintained
AutoPowr/IVT selector control via CommandCenter display
The AutoPowr/IVT application setting employs four modes to take full advantage of the engine-transmission communication: full AUTO, custom, pedal and manual.
Full AUTO mode
Full AUTO mode enables the tractor to make adjustments to the transmission operating mode automatically, based on the engine and transmission speeds and the load on the tractor. This should be the AutoPowr/IVT transmission setting for 95 percent of all applications.
Full AUTO mode switches between load control and fuel economy mode seamlessly, with no involvement from the operator, as conditions and applications change. Fuel economy mode automatically switches off when the power take-off (PTO) is engaged to provide full PTO power. Operators can set the maximum forward and reverse speeds for the tractor in their particular application.
NOTE: Activation ECO is not available in full auto mode.
- This feature makes the AutoPowr/IVT an ideal transmission for operations that require a lot of speeds (like baling or loader work).
- Upon release of the AutoClutch, the tractor will accelerate to the previous command speed (ideal for round baling).
- Excellent modulation makes inching to implements and attachments easy.
The AutoPowr/IVT transmission is a combination of mechanical and hydraulic components that can provide low speed with extremely high levels of torque:
- Allows the tractor to smoothly pull away, even under high loads
- Enhances front loader operation by delivering high torque, driving the tractor into the pile without slippage
- Retains constant working speeds with PTO implements, which tend to push the tractor (spading or rotary cultivator)
Creeper mode is a standard feature on the AutoPowr/IVT transmission. Down to 50 m/h (164 ft/h), the creeper mode is activated when the selected speed is below 2.1 km/h (1.3 mph) in set position 1.
When the tractor moves below 600 m/h (1968 ft/h), the engine speed is independent of travel speed. This allows the operator to choose the engine speed that best fits the task (rated speed for hydraulic or PTO usage, or low idle for fuel-saving operation). No additional power is needed.
- Ensure that the operator has the best driving options when required
- Independent droop settings allow the operator improved performance and flexibility
Pedal mode settings
Pedal mode allows the operator to change the tractor’s ground speed independently from the engine speed. The ground speed is controlled through use of the foot pedal while the hand throttle determines engine speed. Maximum ground speed is determined by the location of the speed control lever in the speed band. Operators can lock-in a desired ground speed without pressure on the foot pedal using the pedal lock button (as described above). To unlock the foot pedal, the operator can tap the foot pedal, press the lock button, or press the brake pedal. When releasing the foot pedal, the vehicle decelerates to a safe creep speed. To come to a complete stop, the brake pedal should be depressed.
- Pedal mode is ideal for applications like mowing, baling, or hedge cutting, where it is important to keep the engine speed at a constant rpm independent from the ground speed.
Manual mode settings
Manual mode makes the transmission and engine independent of each other. The transmission does not automatically adjust engine rpm to save fuel. This can prove to be useful in applications like loader work, where the variability of engine speed based on load is not needed.
Load anticipation feature
The load anticipation feature allows the AutoPowr/IVT transmission to predict how much load the engine expects from the activation of the hitch or a particular SCV function.
In full AUTO mode, all load anticipation features are active. In custom mode, they can be turned on or off in the custom settings page. When an SCV or the hitch is activated, the engine speed is raised to 1500 rpm (as long as the commanded throttle position is over this value). This creates a boost in engine power which improves hydraulic performance and prepares the engine for potential load situations (for example, returning an implement to work). Also added is PTO load anticipation. If it is turned off, the engine does not react to PTO engagement and engine speed is controlled purely based on load. If turned on (in custom), when the PTO is engaged, the engine rpm will rise to throttle position or pre-defined PTO cruise setting.
- John Deere exclusive feature
- Tractor recognizes when additional engine rpm is needed
- Saves fuel, because the engine shuts down when no additional power is needed
Similar to the AutoQuad™ PLUS transmission, the AutoPowr/IVT transmission can also adjust the forward/reverse speed ratio. The reverse speeds can be set to a maximum of 30 percent higher and 70 percent lower than forward speeds, but only in range 1. In range 2, the forward-to-reverse speed ratio is 1:1, up to 22 km/h (14 mph). Above that, the reverse speeds will only go up to 30 km/h (19 mph).
Brake with integrated AutoClutch function
With the AutoPowr/IVT transmission, no clutching is required to stop the tractor. After the brakes are released, the tractor automatically accelerates back to its previous speed (if using hand throttle). The effect of AutoClutch can also be set via the CommandCenter display.
CommandPRO™ joystick driving strategy
The optional CommandPRO joystick combines a unique driving strategy with reconfigurable controls.
Layout and functions
1 – travel set speed buttons 1 and 2
4 – reconfigurable buttons and rocker switches (buttons 10 and 11, rocker switches C and D)
- 11 reconfigurable controls for both tractor and implement functions
- Possibility to operate tractor and ISOBUS functions at the same time on the CommandPRO joystick
- Intuitive and easy driving concept
|2089||Standard Cab with CommandPRO|
|2091||Premium Cab with CommandPRO|
|2092||Premium Cab with CommandPRO and cab suspension|
|Rocker D: selective control valve (SCV) II (if equipped)||Button 10: engine set speed 1|
|Rocker C: SCV I (if equipped)||Button 11: engine set speed 2|
|Rocker B: front hitch (if equipped)||Button 12: AutoTrac™ resume (if equipped)|
|Rocker A: rear hitch (if equipped)|
NOTE: For information about reconfigurability, please see operator's station functional area.
The unique driving strategy is designed to deliver highest performance in combination with operator comfort making the daily work much easier and efficient.
- Pedal and joystick mode are active at the same time
- ActiveZero keeps the output speed actively at 0 km/h (0 mph) until command for acceleration is given independent of load or engine speed
- Command top and zero speed simply by one push or pull
- Unique inching control
- Three easily adjustable travel set speeds
- Two engine set speeds
- Three acceleration response settings
The inching control of the CommandPRO joystick simplifies the attachment of implements. Once the joystick is pushed into the inching range, the tractor moves very slowly in the selected direction. Speed is dependent on the joystick position and can be speed between 0 and 2 km/h (0 and 1.2 mph). Maximum speed of the inching range can be set to 5 km/h (3.1 mph) with the travel speed adjustment wheel.
Unlike the main range, releasing the joystick means the speed is reduced until the vehicle stops completely. This allows the operator to fully focus on the implement and quickly stop if required.
|Forward movement||Reverse movement|
|2||Top set speed||Zero speed|
|5||Activate set speed|
Pedal and joystick mode active at the same time
The change between using the foot pedal or the joystick can happen while driving for ease of use and comfort. The simple rule is: the higher speed command is superior. When changing from the pedal to the joystick, there is a short overlap where the joystick takes over the command from the pedal before the pedal is released. Similar, when changing from joystick control to the foot pedal, the driver needs to push the foot pedal to the point of speed where the joystick is before it can take over.
The settings influence the following:
- Characteristics of increase and decrease in speed for both CommandPRO joystick and foot pedal
- Speed change value when flicking the CommandPRO lever forward or backward (triggering).
- 0.2 km/h (0.12 mph) in slow acceleration mode
- 0.5 km/h (0.31 mph) in normal acceleration mode
- 1 km/h (0.62 mph) in rapid acceleration mode
- Acceleration characteristics when activating a travel set speed
- Tractor behavior when commanding a change in direction of travel
To ensure comfortable and reliable deceleration of the tractor with both the foot pedal and the CommandPRO joystick the tractor is equipped with unique technology. The engine overspeed protection ensures that both transmission and engine are not overloaded when decelerating. Additionally, the anti-jackknife technology compares wheel speed of front and rear wheels when decelerating through the joystick, as this means that the front brakes are not applied but only through the rear axle. If the front wheels are moving quicker, the transmission automatically adjusts to ensure the same wheel speed and avoid the jackknife situation.
Travel set speeds
The travel set speed buttons on the CommandPRO joystick allow the operator to set two set speeds. The operator has to preselect the desired set speed by pushing the travel set speed button 1 or 2 and once the joystick is pushed to the right, the set speed is activated and the travel speed will be adjusted until the set speed is achieved. Additionally, the operator can set a maximum travel speed through the travel speed adjustment wheel or in the CommandCenter™ display.
There are different ways to set or adjust the set speeds:
- In the CommandCenter display
- If current travel speed should be saved as a set speed, press and hold either one of the buttons for 2 seconds and the speed is saved
- When already using a set speed, it can be adjusted with the travel speed adjustment wheel
The operator can also set a dedicated set speed when changing the travel direction. For example, the tractor is driving forward at 10 km/h (6.2 mph) and for reversing the reverse shuttle shift speed is set to 5 km/h (3.1 mph). This means when the shuttle shift takes place, the tractor will accelerate to 5 km/h (3.1 mph) in reverse direction. This function can be turned on/off and set to the dedicated speed in the CommandCenter display.
The three settings for acceleration and deceleration with the CommandPRO joystick can be changed by pressing acceleration response button. Three light-emitting diodes (LEDs) next to the set button indicate the currently activated setting.
- Smooth acceleration and deceleration – one LED glows
- Normal acceleration or deceleration – two LEDs glow
- Rapid acceleration and deceleration – three LEDs glow
Park lock and neutral
The park lock is disengaged automatically when commanding any direction of travel. Additionally, it engages automatically when the driver leaves the driver seat while the tractor is stationary. If the tractor is equipped with a trailer brake, this logic also applies for the trailer brake.
The buttons for the park lock and neutral position are next to the CommandPRO joystick on the CommandARM controls. There is no park lock or neutral position available in the left-hand reverser.
Rear-mounted selective control valves (SCVs)
To control a rear implement, up to six SCVs or five SCVs plus Power Beyond can be ordered (6145R-6250R). For (6110R- 6130R) up to five SCVs or four SCVs plus Power Beyond can be ordered. The SCVs can be controlled electrically. Up to four mechanical SCVs are available, in combination with Power Beyond. All mechanical or electrical SCVs feature four positions - neutral, raise, lower, and float.
- Release levers make disconnecting hydraulic hoses easy
- Relocated valves improve operator's visibility to the rear hitch
- Up to six rear SCVs give operators total flexibility
|3312||Two mechanical SCVs – premium||Premium couplers with high-pressure relief lever. Two mechanical SCVs 450 Series. Only in combination with PowrQuad™ Plus transmission or AutoQuad™ Plus transmission.
Only available on 6110R - 6130R.
|6110R, 6120R, 6130R|
|3332||Three mechanical SCVs - premium||Premium couplers with high-pressure relief lever. Only in combination with PowrQuad Plus or AutoQuad Plus.||6110R, 6120R, 6130R, 6145R, 6155R, 6175R, 6195R, 6215R|
|3311||Two electronic SCVs - premium||Premium couplers with high-pressure relief lever.||6110R, 6120R, 6130R|
|3331||Three electronic SCVs - premium||Premium couplers with high-pressure relief lever.||6110R, 6120R, 6130R, 6145R, 6155R, 6175R, 6195R, 6215R, 6230R, 6250R|
|3341||Four electronic SCVs - premium||Premium couplers with high-pressure relief lever.||6110R, 6120R, 6130R, 6145R, 6155R, 6175R, 6195R, 6215R, 6230R, 6250R
NOTE: Not available for 6155RH.
|3351||Five electronic SCVs – premium||Premium couplers with high-pressure relief lever. When ordered with right-hand console, (code 2055) also electrical joystick (code 841L) for operation of rear SCVs or electrical midstack SCV (code 8922, 8923, 8914 or 8915) is required. A maximum of four SCVs can be operated via paddle pot at right-hand console.||6110R, 6120R, 6130R, 6145R, 6155R, 6175R, 6195R, 6215R, 6230R, 6250R
NOTE: Not available for 6155RH.
|3361||Six electronic SCVs – premium||Premium couplers with high-pressure relief lever. Not with right-hand console (code 2055). Not in combination with electrical joystick (code 841L) and any option with electrical joystick.||6145R, 6155R, 6175R, 6195R, 6215R, 6230R, 6250R
NOTE: Not available for 6155RH.
Mechanical control valves
The tractor may be equipped with one type of mechanical control valves: premium (450 Series).
Premium-couplers control valves also have an additional lock function (position 3), which holds the control lever in the raise or lower position until the pressure in the oil circuit has reached a predetermined value (e.g., when the control cylinder has reached its end position).
In position 2, the control lever returns to neutral as soon as it is released and is the setting for normal hydraulic operation.
If an implement is connected, pressure connection has to be connected to the lower coupler. With standard SCVs, a valve prevents sudden loss of pressure caused by leakage when the engine is shut off.
On premium SCVs, the likelihood of leakage is further diminished.
- Position 1
- Position 2
- Position 3
- Hydraulic oil flow control
Electrical control valves
The tractor may be equipped with the premium (450 Series) control valves. All main characteristics can be controlled by the CommandCenter™ display.
Example options of rear valve configuration
Hydraulic control options
Hydraulic set up
Shortcut button right-hand console
Simply push the hydraulic symbol on the right-hand side console or the CommandCenter and the CommandCenter display shows a setup menu to:
- Monitor valve status - detent, float, or neutral
- Adjust maximum flow and detent (combine for both direction or separate extent and retract adjustment)
- Time detent - this is particularly useful when repeat SCV operations are performed, such as lowering a mower-conditioner plow or cycling planter markers.
- Continuous flow detent - this is particularly useful when a hydraulic motor is used, such as on an air seeder.
SCV flow setup
SCV flow rate can be programmed between 0.04 and 10 allowing fine tuning for implements with different hydraulic requirement.
Behavior can be set between linear (red), progressive (green), or a combination (yellow) for exact flow modulation and precise valve management.
- Linear means that the distance travelled by the SCV/ICV corresponds to the distance travelled by the control lever/multifunction lever
- Progressive means that initially the distance travelled by the SCV/ICV is less than that travelled by the control lever/multifunction lever (giving a more sensitive start to the movement)
Combination is an intermediate stage between the two settings listed above.
ComfortView™ cab operator environment
ComfortView cabs feature a modern, automotive-style instrument panel as base equipment. The instrument pod has two large analog dials for engine and tractor speed, as well as two smaller dials that display fuel level, diesel exhaust fluid (DEF) level, and coolant temperature. The steering column and dash are adjustable to suit the operator's needs. The column tilts toward the operator and a lever on the left-hand side allows for the column to telescope out to the desired level.
A dimming mode automatically reduces the brightness of the instrument illumination when the tractor lights are used.
Steering column control panel
Instrumentation control panel
The instrumentation panel has a row of information and warning lights across the bottom to monitor all important tractor functions. A three-stage warning system first gives information, then gives warnings, and finally, gives a stop alarm to prevent damage from occurring in the event of a component malfunction. An integrated power take-off (PTO) over-speed warning is incorporated into the diagnostics to ensure proper operation.
Dash instrument panel controls include:
|Left side||Right side|
|Left-hand reverser||Two-speed and optional intermittent wiper|
|High-/low-beam switch||Key start/stop|
|Hazard switch||Road/work lights on/off|
|Self-cancelling turn signals/horn|
The 6R Series features a redesigned CommandARM console with all key vehicle functions in one place. The updated CommandARM layout is only available with Infinitely Variable Transmission (IVT™) and DirectDrive transmissions. The base 21.3-cm (8.4-in.) 4200 CommandCenter™ Display or optional 25.4-cm (10-in.) (4600 CommandCenter Display is fully integrated onto the CommandARM and offers fast adjustment of additional tractor functions.
The CommandARM design allows for 37.5 degrees of total seat swivel and adjustable positioning matching the operator’s preference. (30 degrees right and 7.5 degrees left).
Hydraulic and hitch controls utilize fingertip paddle pots for raise/lower and extend/retract functions. The CommandARM offers up to a maximum of six electronic selective control valves (E-SCVs) (without electronic joystick). The optional electrical joystick replaces fingertip paddle pots for control of selective control vales (SCVs) and allows for programmable hydraulic functionality according to operator preference. A maximum of five E-SCVs can be ordered with the electronic joystick. For tractors with an IVT transmission, the CommandPRO™ joystick is available. Its 11 reconfigurable buttons enable the operator to have all necessary controls accessible without hand movements (for details, click here).
Controls for radio, lights, rotary beacon, and hazard flashers are located to the center right on the CommandARM along with PTO for front (if equipped) and rear PTO. Additionally, located on the right side of the CommandARM is an encoder wheel which allows for finite positioning of the rear 3-point hitch. There are three buttons near the encoder for set lock and return to height. Adjustment knobs for the 3-point hitch are located under the cover for the CommandARM storage compartment and allow for adjustment of the rate of drop, hitch height limit, and depth control.
The transmission control and throttle are placed on the left side of the CommandARM closest to the operator for convenient setting and adjustment. The throttle design incorporates buttons which control engine cruise speed, pedal lock/cruise control, and transmission Eco settings (for more information, refer to the AutoPowr™ or DirectDrive transmissions pages).
Located just to the right of the throttle is the auto-steer activation button and four sequence controls for iTEC™ functions. Behind the iTEC sequence controls are buttons which control the activation and deactivation of mechanical front-wheel drive (MFWD) and differential lock.
Differential lock can also be activated by foot switch on the cab floor. A feature in the 6R Series Tractor is auto steering angle dependent differential lock button.
Operators can easily identify controls by icons located near levers, and each functional area is color coded.
- Motion (throttle, transmission) - orange
- MFWD and hydraulics (hitch and SCVs) - black
- PTO - yellow
- All main tractor functions in one place
- Hand throttle module with integrated cruise control/pedal lock and Eco function
- Integrated reconfigurable joystick
- All controls and display move with the operator's movement or motion
- Availability of optional 25.4-cm (10-in.) 4600 CommandCenter Display
- Integrated storage compartment with hitch controls
Right-hand console controls
The right-hand control console is angled for operator comfort and ease of operation. The design of the right-hand console is controlled by the type of SCVs chosen.
Mechanically actuated valves are controlled by traditional levers, while electronically actuated valves are controlled by fingertip paddle pots. Controls for the ComfortView cab are grouped by function on the right-hand console.
The modular console panel provides individual access to hand throttle, transmission controls, MFWD switch (if equipped), hitch command console, load/draft control, SCV, and PTO controls.
The console is also the location of the CommandCenter display. The CommandCenter allows the operator to customize important tractor functions.
This option requires a PowrQuad™ or AutoQuad™ transmission.
- Ergonomic placement of controls to match arm movements
- Integrated hitch control module with draft wheel
The 6R Tractors have seven cab packages designed to match producers' operations. There are three levels of comfort - economy, standard, and premium. There are two control configurations available: a right-hand console for the PowrQuad PLUS or AutoQuad PLUS transmissions and the CommandARM console for the IVT and DirectDrive transmissions. There is an option for hydraulic cab suspension for the premium package. Below is a chart showing the available packages and what is included in each package.
- Easy ordering of cab features
- Built-in comfort and convenience
Base features in all cab packages:
- Power outlet
- Seven-pin signal interface socket
- Multi-power outlet strip
- Inner rear-view mirror
- Cup holder on rear right-hand cornerpost
- Front wiper and washer
- Overhead compartment with one slot
- Overhead storage compartment on left-hand side
- Courtesy light, coat hook, floor mat
- External starting connectors (outside under right-hand door)
- iTEC control (code 8216)
Cab packages for 6230R and 6250R
|Cab packages||Standard CommandARM||Premium CommandARM||Premium CommandARM and cab suspension||Standard cab with CommandPRO||Premium cab with CommandPRO||Premium cab with CommandPRO and cab suspension|
|Two panorama doors (left-hand and right-hand sides)||X||X||X||X||X||X|
|Standard seat (Grammer)||X||---||---||X||---||---|
|Premium seat (Grammer DDS)||---||X||X||---||X||X|
|Mirrors - right hand and left hand - manually adjustable and telescopic||X||---||---||X||---||---|
|Wide-angle mirrors - right hand and left hand - electrically adjustable||---||X||X||---||X||X|
|Front sun visor||X||---||---||X||X||X|
|Front and rear roller blind||---||X||X||---||---||---|
|Rear wiper and washer||X||X||X||X||X||X|
|Manual temperature controls||X||---||---||X||X||X|
|Automatic temperature controls||---||X||X||---||X||X|
|Hydraulic cab suspension||---||---||X||---||---||X|
|Leather comfort package||---||X||X||---||X||X|
Grammer is a trademark of Grammer AG Aktiengesellschaft.
Cab packages for 6110R, 6120R, 6130R, 6145R, 6155R, 6175R, 6195R, and 6215R
|Premium right-hand console||Premium
right-hand console and
|Standard cab with CommandPRO||Premium cab with CommandPRO||Premium cab with CommandPRO and cab suspension|
|Two panorama doors (left-hand and right-hand sides)||X||X||X||X||X||X||X||X||X||X|
|Standard seat (Grammer®)||X||X||X||X||---||---||---||X||---||---|
|Premium seat (Grammer DDS)||---||---||---||---||X||X||X||---||X||X|
|Mirrors - right hand and left hand - manually adjustable and telescopic||X||X||X||---||---||---||---||X||---||---|
|Wide-angle mirrors - right hand and left hand - electrically adjustable||---||---||---||X||X||X||X||---||X||X|
|Front sun visor||X||X||X||---||---||---||---||X||X||X|
|Front and rear roller blind||---||---||---||X||X||X||X||---||---||---|
|Rear wiper and washer||---||X||X||X||X||X||X||X||X||X|
|Manual temperature controls||X||X||X||---||---||---||---||X||X||X|
|Automatic temperature controls||---||---||---||X||X||X||X||---||X||X|
|Hydraulic cab suspension||---||---||---||---||---||X||X||---||---||X|
|Leather comfort package||---||---||---||---||---||X||X||---||X||X|
*6155RH right-hand console only
PowerTech™ PVS/PSS Stage 4 engine
John Deere 6R Series Tractors feature the reliable and proven PowerTech PVS 6.8L and PSS 4.5L and 6.8L engines. These air-to-air aspirated engines deliver a power bulge above rated power to provide excellent torque in demanding applications.
- Series turbochargers (PSS only)
- Variable geometry turbocharger (VGT)
- Air-to-air after cooling
- High-pressure common rail (HPCR) fuel system
- Engine control unit (ECU)
PowerTech PSS/PVS engine identification
- A constant power range of 2100 rpm down to 1500 rpm
- Power bulge of 10 percent
- Greater tractor productivity
- Responsive power reducing the need to downshift the transmission
To match the engine power characteristics and improve the operation economy of the machine, the rated engine speed is 2100 rpm.
The PowerTech PSS 4.5L and 6.8L utilizes two turbochargers – a VGT and a fixed geometry turbocharger, providing the torque rise and engine response needed to meet varying load conditions.
Fresh air is first drawn into the low-pressure fixed geometry turbocharger and compressed to a higher pressure. The compressed, higher pressure air is then drawn into the high-pressure VGT, where the air is further compressed. By splitting the work between two turbochargers, both can operate at peak efficiency and at slower rotating speeds.
- Deliver high power density
- More low-speed torque and responsiveness to meet varying load conditions
The VGT is electronically controlled and actuates the turbo vanes as required to maintain peak engine performance.
The turbocharger’s vanes are in the exhaust flow. The opening or closing of the vanes changes the outlet volume and airflow speed against the turbocharger turbine. When exhaust flow is low, the vanes are partially closed. This partial closure increases the pressure against the turbine blades to make the turbocharger spin faster and generate more boost pressure.
The ability to keep the airflow at optimum levels provides more consistent engine boost pressure and the ability to respond to load quickly across the entire engine rpm range. This system is without the turbo lag that can be found on some engines.
- Increased low rpm torque
- Quicker response to load
- Increased peak torque
- Improved fluid economy
- Improved performance at high altitudes
Air-to-air after cooling
Air-to-air after cooling lowers the intake manifold air temperature and provides more efficient cooling while reducing cylinder firing pressure and temperatures for greater engine reliability. Since lower temperature air is denser, a higher volume of air flows into cylinders so the engine can meet the increasing horsepower demands. Lowering the intake manifold and cylinder temperatures also aid in lowering the combustion temperature, which lowers the NOx produced as a result.
- Higher horsepower
- Less NOx production
HPCR fuel injection system
Every PowerTech PSS 4.5L and 6.8L engine utilizes a HPCR fuel system to efficiently supply fuel to injectors. The high-pressure fuel pump instantly responds to requirements for more or less fuel flow or pressure. This electronically controlled, high-pressure pump delivers pressure on demand according to the application requirements. Pressure on demand ensures an efficient injection system resulting in high-injection pressure independent of engine speed.
- Instantly respond to load changes reducing the need to change gears
- Improved fluid economy
Engine control unit (ECU)
The ECU uses signal inputs from sensors and pre-programmed performance modeling to control critical engine functions such as fuel quantity, injection timing, air-to-fuel ratio, multiple fuel injections, amount of cooled exhaust gas recirculation (EGR), and a host of other control parameters.
- Optimized fluid economy
- Maximum engine performance
Each injector is controlled individually by the ECU. The ECU turns the injector on and off during each firing cycle to control the fuel delivery into each cylinder.
Load and speed sensing allow each cylinder’s fuel delivery rate to be adjusted independently at the individual injector. With each injection cycle, the ECU can make the following adjustments on the go:
- Number of injections
- Fuel pressure in the common rail
- Start of injection
- Duration of injection
This management system is connected to the transmission, allowing the engine and transmission to respond simultaneously.
Cold weather and high-altitude compensation are also precisely controlled for quality starts regardless of weather and maximum performance at high elevations. The ECU also features improved diagnostic capabilities. It is faster, has more working memory, and is responsible for monitoring and executing all aspects of the Integrated Emission Control System.
Lighting options provide maximum visibility in every direction
Lights on the 6R Series Tractors have been positioned and designed to provide maximum visibility to the front, sides, and rear of the tractor to increase productivity in any operating condition. The cab lighting pattern provides 330 degrees of coverage while the hood lighting provides the remaining 30 degrees for completely programmable, 360-degree, stadium-style lighting.
- Two HB3 hood road lights - low beam (A)
- Two HB3 hood road lights - high beam (B)
- Two HB3 hood outer work lights (C)
- Turn signals beltline mounted with clearance lights (E)
- Turn signals fender mounted (Q)
- Brake lights rear fender mounted (R)
- Two HB3 halogen inner front-roof-mounted adjustable work lights (H) / with a panorama roof, the work light represented as (G)
- Two HB3 halogen inner rear-roof-mounted adjustable work lights (N)
|* Base package - with non-panorama roof||HB3||HB3||HB3||HB3||HB3||HB3||HB3||HB3||HB3|
|Light package - Standard||873F||HB3||HB3||HB3||HB3||HB3||LED||X||LED||HB3||HB3||HB3||HB3||HB3||HB3|
|Light package - Premium||873E||HB3||HB3||HB3||HB3||HB3||LED||X||LED||HB3||LED||HB3||HB3||HB3||HB3|
|Light package – Base panorama roof code (878W)||HB3||HB3||HB3||HB3||HB3||HB3||HB3||HB3|
|Light package - Standard - panorama roof||873A||HB3||HB3||HB3||HB3||HB3||LED||X||HB3||HB3||HB3|
|Lighting package – Panorama light package||873C||HB3||HB3||HB3||HB3||HB3||LED||X||HB3||LED||HB3||HB3|
Selecting the lighting mode
Operators can quickly select a lighting mode on the steering console by operating a rotary switch. The four settings available are:
- Light switch in the off position
- Headlights, taillights, and warning lights in the on position
- Headlights in the on position
- Headlights and work lights in the on position (depending on CommandCenter™ assignments)
- Easy to locate and operate
- Small and compact design
The CommandCenter allows operators to customize two different light programs. The operator can switch between the two programs with the push button. Also standard on the 6R Tractors is the battery power-saver feature.
When the engine is off and the outside lights have been left on, this feature is designed to avoid battery run-down. After the lights have been left on for 30 minutes and the key is in the off position, the lights will cycle, or blink on and off five times as an alert. The lights will continue to illuminate for one more minute and then automatically shut off to protect the battery.
- The John Deere light programming adds high performance to the operator.
- Individual light selection adds to high operator performance to prevent blinding other operators when two machines are working close to each other.
- Improved uptime due to 360-degree lighting.
Additional lighting is available to match various applications and ensure maximum around-the-clock productivity. Optional LED lighting technology provides extreme brightness and a daylight color output for excellent definition of the field.
The LED lights provide 40 percent greater coverage width and 10 percent more light coverage in the rear. LED lighting packages use 45 percent less amps than standard halogen lights and have an increased life expectancy over HID lights which leads to lower costs of ownership over the life of the tractor.
Beacon light for added visibility
One beacon light is mounted on the front of the cab to provide a rotating warning light for road traveling and added visibility.
- To warn other road users of the presence of a large machine on the road.
- Easily removed, with no tools required, when approaching height restricted areas.
- Waterproof to ensure good performance when required.
- The beacon has a degree of flexible movement, and are not completely static, and can withstand the impact of objects such as tree branches.
- Front cab is roof mounted.
- A second beacon light can be field installed on the right side of the cab roof.
Triple-Link Suspension (TLS™) Plus: More than comfort, it is a performance feature
More productivity - greater operator's comfort
CommandCenter™ console TLS Plus provides exclusive front suspension using a hydropneumatic self-leveling system to increase productivity and improve ride dramatically. TLS Plus provides more control over the front suspension of the tractor. In the field, the TLS Plus front suspension maintains ground-to-tire contact, enabling more power to the ground.
The TLS Plus reacts to inputs, which provides the best comfort and stability. Inputs include travel speed, implement weight, draft characteristics, and braking activity. The TLS Plus activates whenever the tractor exceeds 1.5 km/h (0.9 mph).
The suspension is set to maximum hardness, which is preferable for front loader operation. This allows the operator to adjust the suspension for different situations. If the tractor exceeds 35 km/h (22 mph), the hardness is reduced to provide greater driving comfort. When dropping below 25 km/h (15 mph), maximum is reactivated.
This setting can be useful when attaching mounted implements to the front hitch. When activated, the axle settles in its mid position and then can be raised or lowered manually with the touchscreen or shortcut buttons F and G. The manual setting is overridden when the travel speed exceeds 5 km/h (3 mph) and returns to the previously selected setting of automatic or maximum.
First link: vertical linkage
Two double-acting hydraulic cylinders control the vertical movement of the axle, which leads to excellent sensitivity.
Second link: longitudinal linkage
Third link: lateral linkage
This third link holds the axle laterally. These few simple components ensure excellent suspension quality and reliability with reduced maintenance.
A full stroke of the suspension typically takes 1 second, allowing the system time to distinguish between typical terrain inputs or level changes. This prevents overreactions.
In addition to active central leveling of the suspension, the John Deere TLS Plus adopts a constantly variable rod side pressure by using a closed loop system. When the suspension reacts at a different frequency, which could be detrimental to driver comfort, the system then fine-tunes the rod side pressure, changing the spring stiffness and improving the ride behavior.
*Not available in 6155RH
John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.
John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.
With your permission, John Deere Connected Support:
- Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
- Saves time by remotely viewing in-cab displays, reducing trips to the machine
- Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
- Connects experts with the information needed to respond to downtime faster and prevent it altogether
With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.
Specs & Compare
|Specs & Compare|
|Engine description||John Deere PowerTech™ PSS|
|Engine displacement||6.8 L
415 cu in.
|Rated engine power||97/68EC: 184 kW
|Maximum engine power||97/68EC: 202 kW
|Rated PTO power (hp SAE)||149 kW
|Maximum PTO power||253 hp
|Transmission type||Infinitely variable transmission (IVT™), 0.05-42 km/h
IVT, 0.05-50 km/h
|Hydraulic pump rated output||Standard: 85 cc pump: 160 L/min
|Rear hitch category (SAE designation)||Standard: Category 3/3N: 7400 kg
Maximum: 10,400 kg
|Base machine weight||9300 kg
|Description||John Deere PowerTech™ PSS|
|Engine type||Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with four valves in head|
|Rated speed||2100 rpm|
|Aspiration||Turbocharged, variable geometry and fixed turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation|
|Emission level||Final Tier 4|
|After treatment type||DOC/DPF/SCR|
415 cu in.
|Rated power||97/68EC: 184 kW
|Rated PTO power (hp SAE)||149 kW
|Maximum PTO power||253 hp
|Intelligent Power Management (IPM)||Transport and/or mobile PTO applications
Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp
|Power boost||10 percent|
|Maximum engine power||97/68EC: 202 kW
|Engine peak torque||At 1,600 rpm: 1167 Nm
|PTO torque rise||40 percent|
|Air cleaner type|
|Fuel injection system and control|
|Type||Infinitely variable transmission (IVT™), 0.05-42 km/h
IVT, 0.05-50 km/h
|Reverser||Left-hand electrical reverser|
|Type||Closed-center, pressure/flow compensated|
|Pump rated output||Standard: 85 cc pump: 160 L/min
|Available flow at a single rear SCV||116 L/min
|Number of rear selective control valves (SCVs)||Standard: Three ISO couplers
Optional: Three to six ISO couplers
|Number of mid selective control valves (SCVs)||Up to three|
|Joystick SCV control||Available|
|SCV control||Standard: Electronic
|Auxiliary hydraulic features|
|Available flow at front SCVs|
|Number of front selective control valves (SCVs)|
|Remote control valves available||Available: Remote control switch|
|Hitch category (SAE designation)||Category 3/3N: 7000 kg
Maximum: 10,400 kg
|Maximum lift capacity behind lift points||7000 kg
|Rear axle differential lock||Electrohydraulic|
|Hitch draft control load sense type|
|Lift capacity at standard frame|
|Drawbar category||Category 3|
|Maximum vertical load||Category 3: 1600-2800 kg
Maximum vertical load dependent on drawbar position
Rear power take-off (PTO)
Independent Standard: 45 mm (1.375 in) 540E, 1000, 1000E rpm reversible shaft
Optional: 35 mm (1.375 in) 540, 540E, 1000 rpm reversible shaft
|Engine rpm (at rated PTO speeds)||1950 engine rpm at 540/1000 rpm PTO
1761 engine rpm at 540E rpm PTO
1756 engine rpm at 1000E rpm PTO
|PTO actuation||Electrical modulation|
|Economy PTO speeds|
|Ground speed PTO option availability|
|Multispeed PTO option availability|
|Reverse PTO speeds|
|Electric power||Seven-pin electrical socket
Optional: Three-pin and ISOBUS socket
|Standard lift capacity||At hook ends: 3300 kg
|Front power take-off (PTO)||1000 rpm, clockwise rotation (from driving position)|
|PTO speed||Engine at PTO speed (1000): 1965 rpm|
|Type||Standard: Flange, 1892 mm
Optional: Rack and pinion, 2550 mm
Rack and pinion, 3009
|Final drive type||Inboard planetary three pinion|
|Differential controls||Full-locking electrohydraulic|
|Brakes, type and control|
|Rear differential lock|
|Type||Standard: Triple-Link Suspension (TLS™)|
|Front axle differential lock||TLS: Limited slip
TLS with brakes: Full-locking electrohydraulic
|Wheel tread range||MFWD: With TLS and brakes: 2370 in.
|Central Tire Inflation System (CTIS)|
|Turning radius with brakes|
|Turning radius without brakes|
|Alternator size||Standard: 250 amp
Optional: 250 amp
|Battery options||12 V|
|Working lights||Standard: 14 halogen
Available: 12 light-emitting diode (LED) plus two halogen
|Type of bulb in headlight (Halogen, Zenon, LED)||Standard: Halogen, 65 W
|Total cold cranking amps||1850 CCA
With cold weather package or IVT: 1400 CCA
|Type of bulb in beacon (Halogen, Zenon, LED)|
|dB(A) rating for backup alarm|
|Rollover protective structure, OOS||Gearshift location - console/floor
Standard: CommandARM™ console
|Seat||Degree of seat swivel, left hand
Degree of seat swivel, right hand
Standard: Air suspension
Optional: Deluxe air suspension
|Cab suspension||Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)|
|Display||LCD instrument cluster
Standard: CommandCenter™ display: 213.4 mm
Optional: CommandCenter display: 254 mm
|Inner cab volume||3.33 m3
117.59 cu ft
|dB(A) rating||71 dB|
|Cab glass area||6.11 m2
65.77 sq ft
|Safety glass rating|
|Wheelbase||MFWD: 2900 mm
|Overall width||1892 mm
|Overall length||5050 mm
|Overall height||3160 mm
|Front axle center||588 mm
|Approximate shipping weight, Open;Cab||9300 kg
|Base machine weight||Front axle
|Maximum permissible weight||Flange axle: 15,000 kg
Rack-and-pinion axle: 13,450 kg
|Maximum ballast level|
|Crankcase oil volume||23.5 L
6.2 U.S. gal.
|Fuel tank||Standard: 410 L
108.3 U.S. gal.
|Diesel exhaust fluid (DEF) tank||25 L
6.6 U.S. gal.
|Cooling system||29.4 L
7.7 U.S. gal.
|Transmission-hydraulic system||IVT: 160 L
42.2 U.S. gal.
|Interval for engine oil change||750 hours|
|Interval for hydraulic/transmission oil change||1,500 hours|
|Interval for engine coolant change||6,000 hours|
|Lift capacity at full height||680R: 2453 kg
680R: 4480 kg
|Maximum lift height||680R: 4480 mm
|Guidance||Standard: AutoTrac™ assisted steering|
|Telematic||Standard: JDLink™ system|
|Remote diagnostics||Service ADVISOR™ Remote tool available with JDLink hardware and activations|
|Country of manufacture||Germany|
|CommandCenter video inputs|
|Side slope rating|
|Uphill/downhill slope rating|
|Front axle brakes|
|Hydraulic trailer brakes|
|Pneumatic trailer brakes|
|Primary brake (foot brake)|
Learn more about financing options for this piece of equipment including:
- John Deere Revolving Plan account
- John Deere Multi-Use account
- Installment financing options
- Equipment leasing
- 10 Year Platinum Warranty Package
Winter Maintenance with 21st Century Equipment
Posted: November 30, 2022
When preparing for the winter months, it is essential to ensure your equipment has been properly taken care of. In doing so, your machine will have an extended life span, and you will be prepared in the hopes of an early spring!
Wheat Harvest Safety Tips from 21st Century Equipment
Posted: May 31, 2022
Amber waves of grain are spotted with John Deere green, as equipment like S-Series and X-Series combines get to work. Inside these mighty machines are farmers with families who love them. This wheat harvest season, we encourage sensible safety measures like the below.
How to choose the right oil for your machine
Posted: August 11, 2021
When it comes to servicing your equipment properly, it feels like there are just so many options. Let’s explore different types of oils available and identify what to use in your hardworking equipment, from work trucks to irrigation pivots to tractors.
Get a quote
