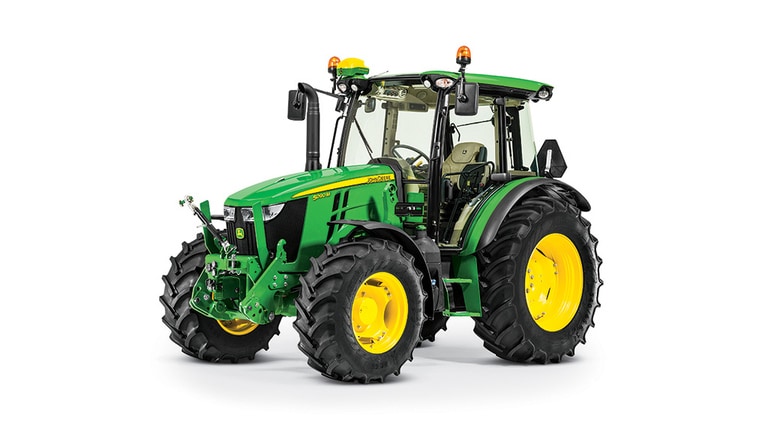

5 Series Utility Tractors
- John Deere PowerTech Diesel Engine
- Final tier 4 compliant engine technology
- Choose from 16F/16R, and 32F/16R transmission options
- Choose climate-controlled cab, open station
- Gordon, NE - 1 available
- Burlington, CO - 1 available
- Torrington, WY - 1 available
EPA Final Tier 4 (FT4) compliant engines with maximum fluid efficiency
The U.S. Environmental Protection Agency (EPA) and Environment Canada requires all off-road diesel engines with 18.6 kW (25 hp) or more to meet stringent FT4 emissions regulations. John Deere uses the most efficient and cost-effective solution for the tractor package to meet emissions requirements at each horsepower level. The 5M delivers a hassle-free emissions solution that allows faster work and operation with ease.
The engine powering the 5M is EPA certified Tier Level 4. This is achieved through a combination of a diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF, or urea).
Several defining features on the 5M maximize the performance and reliability of the emissions package. A completely shielded DOC/SCR not only protects essential components from damage, it also keeps out dirt and debris. The well-packaged and tightly organized circulation system means there is more room to work around the tractor.
Key components of the emissions system include:
John Deere has chosen to utilize an exhaust filter to reduce particulate material so the engine can operate at a level which produces less NOx. With less NOx created, less DEF is required to treat. The result is improved total fluid economy (diesel and DEF).
The engine is programmed to aggressively respond to changes in power needs, which can temporarily increase particulate matter. Since the exhaust filter removes particulate matter instead of the engine, the engine is left free to do what it is designed to do – deliver all of the power, torque, plus transient response needed.
DEF is an ISO 22241 standard aqueous urea solution consisting of 32.5 percent urea and has a freezing point of -11°C (12°F). A heated DEF tank keeps the customer in the field longer even when the temperatures drop below freezing. The DEF tank header is integrated with a temperature sensor, and plumbed engine coolant lines are used to promote thawing and prevent freezing in the tank during operation.
Mounted near the DEF tank, the electronic control unit (ECU)-controlled supply module draws diesel exhaust fluid from the storage tank and provides a pressurized flow to the dosing module. When the ignition key is off, the supply module pump will reverse direction to return any accumulated fluid back to the tank. The supply module is also fitted with a replaceable filter to prevent contaminants from entering the dosing lines. Both the supply module and dosing lines are electrically heated and controlled by the ECU to determine when DEF dosing can begin.
The dosing module is cooled by engine coolant and used to inject DEF at a pressure of 9 bar (900 kPa, 130 psi) into the decomposition tube. A harness is connected to the dosing valve that relays the needed DEF to inject based upon the amount of NOx exiting the DOC measured from the NOx tube sensor.
The decomposition tube is the internal mixing device used to circulate DEF with engine exhaust prior to entering the SCR/AOC after-treatment device.
To reduce the NOx, DEF is injected into the exhaust stream. When the exhaust gases combine with the DEF in the SCR catalyst, the NOx is broken down into nitrogen and water vapor.
Exhaust gas recirculation (EGR)
EGR reduces the high temperatures where these compounds are formed in the engine cylinders by replacing excess oxygen with a prescribed amount of cooled exhaust gas.
Exhaust gases contain more carbon dioxide than oxygen. The EGR valve, in conjunction with the venturi tube, and engine control unit (ECU), allow a controlled amount of exhaust gas to enter the intake manifold to mix with the incoming fresh air.
Replacing excess oxygen with cooled exhaust gas leads to:
- Lower combustion temperatures, creating less NOx.
In addition, EGR allows for:
- Advanced timing
- Optimal engine performance
- Maximum fuel economy
For added performance and efficiency, the engine passes the exhaust gases through an EGR cooler before it enters the engine.
Exhaust airflow enters the EGR cooler from the exhaust manifold near the turbocharger. Based on engine load, air temperatures, and rpm, the ECU opens or closes the EGR valve, allowing a measured percentage of exhaust gas to enter the intake manifold. The gases mix with the rest of the incoming air from the turbocharger and aftercooler before entering the cylinders.
The PowerTech PWL 4.5L (274.6-cu in.) engine utilizes one turbocharger — a fixed geometry turbocharger. Fresh air is first drawn into the low-pressure fixed geometry turbocharger and compressed to a higher pressure. The compressed air is then routed to the charge air cooler and then to the intake manifold.
Benefits of air-to-air aftercooling
- Lowers the intake manifold air temperature
- Provides more efficient cooling while reducing temperatures for greater engine reliability
- Higher volume of air flows into the cylinders
- Engine can meet the increasing horsepower demands
Combustion process with externally cooled EGR
- According to engine operating conditions, the recirculated exhaust gases reduce the oxygen portion in the intake air to approximately 20 percent. Without any increase of the charge air pressure, the oxygen rate is not high enough to ensure a complete combustion of the fuel injected at high engine loads.
Fuel-efficient combustion is achieved because sufficient oxygen is provided.
A restrained, cooler combustion is realized, since the typical hot combustion process, which is generated by an oxygen surplus, is dampened by the inert exhaust gases. Hence, NOx emissions are reduced.
For more information regarding EPA regulations and the technology behind John Deere Integrated Emissions Control systems, please visit the following link:
Power bulge and torque reserve pull through the tough spots
5M Final Tier 4 (FT4) engines feature up to a 4 percent power bulge when put under load. The power bulge feature of the electronically controlled engine delivers additional horsepower as engine rpm drops below rated speed. Additionally, a 30 percent torque rise provides the force that maintains horsepower as engine rpm drops below rated speed.
When the tractor is under load, power bulge and torque rise work together to get through the tough spots without having to downshift. Horsepower and torque are mathematically related.
As rpm drops, the only way to maintain or increase horsepower is to provide additional torque. The output horsepower is greater than or equal to rated horsepower as the engine is pulled down to 1750 rpm.
The peak torque rise also occurs near the rated economy power take-off (EPTO) speed.
Boost utility tractor productivity with AutoTrac™ guidance
5M Tractors can be ordered with AutoTrac integrated in the tractor display.
AutoTrac is a great solution if you are looking for a lower-cost integrated guidance system for your utility tractor. For the straight track only feature, you will no longer need an additional display or display activation. When a 5M Utility Tractor is ordered with AutoTrac Ready (code 182D), the AutoTrac screen is included; all you need to add is a StarFire™ 6000 Receiver (code 1881).
Benefits of AutoTrac on the tractor display:
- Simple and user friendly
- Total cost of integrated AutoTrac is 36 percent lower by eliminating the need for a precision ag display
- Reduces startup costs with no display activation or subscription fees
- Reduces operator fatigue
- Eliminates implement overlap and optimizes machine efficiency
5M Tractors can also be factory equipped with a 4240 Universal Display (code 190M) that transitions AutoTrac guidance from the tractor display to the Gen 4 4240 Universal Display for additional capabilities:
- On-screen mapping
- Section Control
NOTE: Once the 4240 is disconnected, the tractor display is re-activated.
Heavy-duty 3-point hitch lift capacity for implement versatility
A Category 2, 3-point hitch on 5M Tractors provides the lift capacity and compatibility to perform in a variety of different applications. The 3-point hitch adapts to a wide variety of implements and has plenty of lift capacity to handle heavy implements such as planters, sprayers, and field cultivators.
- With the choice of either mechanical or electrohydraulic hitch controls, hooking up implements is convenient with telescoping draft links, adjustable sway bars, and interchangeable hitch balls.
- Both mechanical and electrohydraulic hitch controls have a depth stop for consistency when lowering the hitch. Each time the position control lever is pushed forward, it stops where the depth stop has been positioned.
- Optional larger cylinders are available for increased lift capacity:
- PowrReverser™ transmission models: 65-mm (2.56-in.) cylinders in base with electrohydraulic hitch lift capacity of 2340 kg (5159 lb); option of one 65-mm (2.56-in.) and one 75-mm (2.95-in.) lift cylinder (averaging to 70 mm [2.75 in.]) which provides electrohydraulic hitch lift capacity of 2701 kg (5955 lb)
- PowrQuad™ PLUS and Powr8™ transmission models: 75-mm (2.95-in.) cylinders in base with hitch lift capacity of 3164 kg (6975 lb); option of 80-mm (3.15-in.) cylinders with hitch lift capacity of 3569 kg (7868 lb)
Adjustable sway bars and telescoping draft links can be easily adjusted to adapt to a wide variety of implements. The right lift link also adjusts without tools for added convenience when leveling implements.
Operators do not need to carry a tool to adjust the rear hitch. Operators can also raise and lower the 3-point hitch from outside of the tractor with the conveniently located rear fender hitch controls.
An updated three-point quick hitch is offered on the 5M Tractors.
- This updated design is a break from the existing welded quick hitch as the frame is cast.
- The curved design eliminates the potential for contact with the rear fender and extensions.
- The quick hitch is available as a field kit option.
Easily manage tractor operations from the digital center display
The digital display in the center console has three liquid crystal displays (LCDs) to make it even easier to operator your 5M Tractor. The reconfigurable display can be navigated with buttons located on the right-hand side of the console. The display allows the operator to view tractor functions and make changes on the go for better machine monitoring and comfort in the field.
- View diagnostic trouble code (DTC) text on the display
- Entry-level guidance within the dash with AutoTrac™ assisted steering system
- Ability to customize tractor functions
- Adjustment of reverser modulation
On the right side of the console in green are a check mark button used to select items, a left arrow button that serves as a back button, and a menu button. The black wheel in the center is used for toggling within screens or adjusting settings.
In addition to displaying machine information, the digital display also serves as the primary interface between the tractor and operator when adjusting hitch, transmission, hydraulic, and engine settings.
Take charge with PowrQuad™ PLUS and Powr8™ transmissions
The ergonomically placed transmission control allows the operator to change gears and ranging with one simple control. Ranges on the transmission control can be selected by moving the controller in an H pattern. The lever selects ranges A, B, C, or D. Ranges C and D are fully synchronized. That means when upshifting, operators can move from range C to D without stopping the tractor. On the downshift, operators can move from D all the way to B without stopping
- PowrQuad PLUS transmission can be ordered 16 forward speeds and 16 reverse speeds with four manually shifted ranges and four electronically shifted speeds in each range.
- Powr8 transmission can be ordered 32 forward speeds and 16 reverse speeds with four manually shifted ranges and eight electronically shifted speeds in each range. Additionally, ECO Shift offers a top speed of 40 km/h (25 mph) with reduced engine rpm in the two highest gears.
- Two buttons (a rabbit or turtle indicator) allow operators to gear up (rabbit) or gear down (turtle) within a range.
- A range change can be made with a simple press of the declutch button rather than using the foot clutch.
- Eliminates wear on the clutch
- Reduces steps to change gears by 35 percent, resulting in improved efficiencies
PowrQuad PLUS and Powr8 transmissions offer great value for producers looking for a more productive transmission in a mid-spec utility tractor.
Premium cab for the ultimate operating experience
The premium cab is designed to provide the ultimate operator experience in comfort and convenience. With the adoption of some 5R Tractor cab structures and features, John Deere has added more technology options, better visibility, and an updated, user-friendly digital display.
- Upward visibility has improved 80 percent with the panorama roof in the premium cab, allowing for easier bale stacking, pallet stacking, and dumping loads into walled trailers.
- The rear floor mat behind the seat provides additional storage space.
- The rearview mirror is positioned for excellent visibility to rear operations.
- To shield the operator from the sun, there is an easy to use front sunshade.
Some of the key features include:
- Deluxe sound package with two 4X6 coaxial speakers and subwoofer
- Factory-installed radio
- Bluetooth® wireless ready
- Satellite ready
- USB port
- Auxiliary cord connection
- Additional heating and cooling vents
- Rear windshield wiper and washer
Bluetooth is a trademark of Bluetooth SIG, Inc.
Mid-frame design for support and strength
The exclusive mid-frame design on the 5M Series offers additional strength and durability but also reduces noise and vibration. Because the mid frames are made from hardened cast steel, they provide the tractor strength and stability even in the toughest conditions.
The mid frames also support and protect different pieces of essential equipment. The hydraulic pump, located between the mid-frames, is attached to the transmission for short hydraulic lines and simplified fluid flows. An optional mid-mount fuel tank allows the tractor to carry an extra 34 L (9 gal.) on cab tractors and an extra 29.5 L (7.8 gal.) on open operator station (OOS) tractors. This is especially useful for long days in the field or when a trip to fill up with diesel may not be convenient.
The mid frames are compatible with current loader mounting frames, which is beneficial for those interested in upgrading their tractors and keeping their H-Series Loaders.
Heavy base tractor weight for stability
A heavy tractor means more down force to keep implements in the ground. More weight also leads to improved traction and performance in the field. Because the 5M is made with heavy and durable cast steel, it weighs enough to power through those tough jobs.
The compactness of the 5M Series regarding wheelbase, weight, and total height tractor makes this tractor suited for a variety of different applications and is the perfect choice for all types of farms.
A heavy tractor also means better stability when performing loader work. Transport full bucket loads faster and lift bales higher with a stronger and more stable base.
3950 kg (8700 lb)
4040 kg (8900 lb)
4040 kg (8900 lb)
4175 kg (9185 lb)
Speakers and subwoofer create powerful sound
5M premium cabs include a subwoofer and two 4X6 co-axial speakers for premium sound quality and music delivery.
Specs & Compare
|Specs & Compare|
|Engine description||John Deere PowerTech™ PWL|
|Engine displacement||4 cylinder: 4.5 L
276 cu in.
|Rated engine power||At 2200 rpm per ISO 97/68/EC: 66.6 kW
|Maximum engine power||69.2 kW
|Rated PTO power (hp SAE)||At 2100 rpm per SAE: 55.9 kW
75 PTO hp
|Maximum PTO power|
|Transmission type||Standard: PowrQuad™ PLUS 16F/16R
Optional: Powr8™ 32F/16R
Powr8™ 32F/16R with creeper
|Hydraulic pump rated output||97 L/min
|Rear hitch category (SAE designation)||Category 2; convertible to 1|
|Base machine weight|
|Description||John Deere PowerTech PWL|
|Cylinders liners||Wet sleeved|
|Emission level||Final Tier 4|
|After treatment type|
|Displacement||4 cylinder: 4.5 L
276 cu in.
|Rated power||At 2200 rpm per ISO 97/68/EC: 66.6 kW
|Rated PTO power (hp SAE)||At 2100 rpm per SAE: 55.9 kW
75 PTO hp
|Maximum PTO power|
|Intelligent Power Management (IPM)|
|Power boost||At 1900 rpm: 4 percent|
|Maximum engine power||69.2 kW
|Engine peak torque||At 1600 rpm: 376 Nm
|PTO torque rise||At 1600 rpm: 30 percent|
|Fuel injection system and control|
|Air cleaner type|
|Type||Standard: PowrQuad™ PLUS 16F/16R
Optional: Powr8™ 32F/16R
Powr8™ 32F/16R with creeper
|Reverser||Left hand, electrohydraulic|
|Creeper||Powr8™ 32F/16R with creeper|
|Pump rated output||97 L/min
|Available flow at a single rear SCV||70 L/min
|Available flow at front SCVs|
|Number of rear selective control valves (SCVs)||Two, up to three total|
|Number of mid selective control valves (SCVs)||Two, up to three total|
|Number of front selective control valves (SCVs)|
|Joystick SCV control||Standard|
|Auxiliary hydraulic features|
|Hitch draft control load sense type||Electrohydraulic|
|Remote control valves available||Standard|
|Hitch category (SAE designation)||Category 2; convertible to 1|
|Maximum lift capacity behind lift points||Standard: 3164 kg
Optional: 3569 kg
|Lift capacity at standard frame|
|Sensing type||Lower link|
|Rear axle differential lock||Electrohydraulic|
|Maximum vertical load||Road/field use (250-mm extended): 1250 kg
Field use (350-mm extended): 1100 kg
Field use (400-mm extended): 1000 kg
Rear power take-off (PTO)
|Type||Independent, 34.9 mm (1.375 in)
Standard: 540/540 Economy (6 spline)
Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft
|Engine rpm (at rated PTO speeds)||540 at 2100 rpm
540E at 1645 rpm
1000 at 2100 rpm
|Economy PTO speeds|
|Reverse PTO speeds|
|Multispeed PTO option availability|
|Ground speed PTO option availability|
|Standard lift capacity||1931 kg
|Front power take-off (PTO)||1000 rpm (21 spline) 34.9 mm (1.375 in.)|
|PTO speed||1000 at 2200 rpm|
|Final drive type||Inboard planetary|
|Brakes, type and control||Hydraulic wet disc|
|Rear differential lock|
|Front axle differential lock|
|Front||MFWD: 12.4R24(320/85R24) R1W Radial|
|Rear||MFWD: 18.4R30 (460/85R30) R1W Radial|
|Wheel tread range||MFWD: front: 1299-1997 mm
|Turning radius with brakes||MFWD: 3.85 m
|Turning radius without brakes||MFWD: 4.0 m
|Central Tire Inflation System (CTIS)|
|Primary brake (foot brake)|
|Front axle brakes|
|Hydraulic trailer brakes|
|Pneumatic trailer brakes|
|Alternator size||Standard: 120 amp
Optional: 200 amp
|Battery options||12 V|
|Working lights||Standard: Halogen
|Type of bulb in headlight (Halogen, Zenon, LED)||Standard: Halogen
|Type of bulb in beacon (Halogen, Zenon, LED)||Optional: LED|
|dB(A) rating for backup alarm|
|Total cold cranking amps|
|Rollover protective structure, OOS|
|Seat||Standard: Mechanical suspension
Optional: air ride or premium air ride
|Display||Digital Dash Display with three liquid crystal displays (LCDs)|
|Inner cab volume|
|dB(A) rating||78 dBA|
|Cab glass area|
|Safety glass rating|
|Wheelbase||MFWD: 2350 mm
|Front axle center|
|Approximate shipping weight, Open;Cab||MFWD: Cab: 4175 kg
|Base machine weight|
|Maximum ballast level|
|Maximum permissible weight|
|Crankcase oil volume|
|Fuel tank||Standard: Cab: 134.0 L
35.4 U.S. gal.
Optional: Cab: 160.5 L
42.4 U.S. gal.
(Field installed kit only)
|Diesel exhaust fluid (DEF) tank||12 L
3.17 U.S. gal.
|Interval for engine oil change|
|Interval for hydraulic/transmission oil change|
|Interval for engine coolant change|
|Lift capacity at full height|
|Maximum lift height|
|Guidance||Optional: Integrated AutoTrac™ Ready|
|Telematic||Standard: JDLink™ Capable
Optional: JDLink™ hardware and subscription
|CommandCenter video inputs|
|Side slope rating|
|Uphill/downhill slope rating|
|Country of manufacture||Augusta, GA, USA|
Learn more about financing options for this piece of equipment including:
- John Deere Revolving Plan account
- John Deere Multi-Use account
- Installment financing options
- Equipment leasing
- 10 Year Platinum Warranty Package
Winter Maintenance with 21st Century Equipment
Posted: November 30, 2022
When preparing for the winter months, it is essential to ensure your equipment has been properly taken care of. In doing so, your machine will have an extended life span, and you will be prepared in the hopes of an early spring!
Wheat Harvest Safety Tips from 21st Century Equipment
Posted: May 31, 2022
Amber waves of grain are spotted with John Deere green, as equipment like S-Series and X-Series combines get to work. Inside these mighty machines are farmers with families who love them. This wheat harvest season, we encourage sensible safety measures like the below.
How to choose the right oil for your machine
Posted: August 11, 2021
When it comes to servicing your equipment properly, it feels like there are just so many options. Let’s explore different types of oils available and identify what to use in your hardworking equipment, from work trucks to irrigation pivots to tractors.
Get a quote
